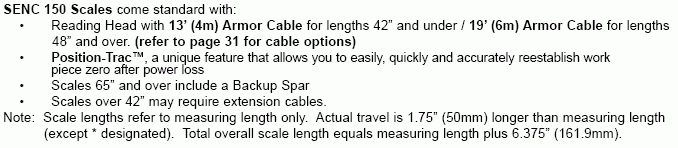

An ACU-RITE SENC 150 precision glass scale is the workhorse of ACU-RITE's scale product line and withstands the elements of contamination found in even the harshest environment. All ACU-RITE precision glass scales incorporate Acu-Rite Companies Inc.'s long-standing tradition of quality, reliability and durability at an affordable price. The all NEW! SENC 150 incorporates the latest innovation in roller bearing technology for reduced backlash and greater scale travel life. The SENC 150 also features a highly integrated scanning sensor that provides superior contamination resistance. The SENC 150 precision glass scale is designed to satisfy a wide range of application needs including, but not limited to, EDM's, grinders, lathes, milling machines and inspection equipment. The SENC 150 precision glass scale is available in travel lengths from 2" - 120", in resolutions of 0.5µm, 1µm, 5µm and with an accuracy of between ±1.5µm/meter to ± 5µm/meter . ACU-RITE SENC 150 scales can be used with all ACU-RITE Digital Readout Products.
