About Fred V Fowler

Catalogue Pages

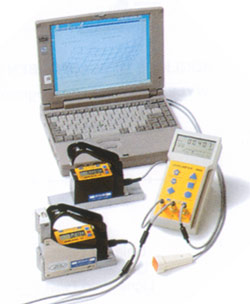

Wyler LevelSoft System

The unique, well proven software system for flatness measurement of surfaces and lines.

Especially useful in combination with the high-precision electronic inclinometers from Wyler AG for checking surface plates and machine tool geometry.

The system is fully compatible with the new ISO 1101 standards for flatness measurement, and endorsed by the Swiss Calibration Service and reciprocal governing bodies such as DIN and NIST.

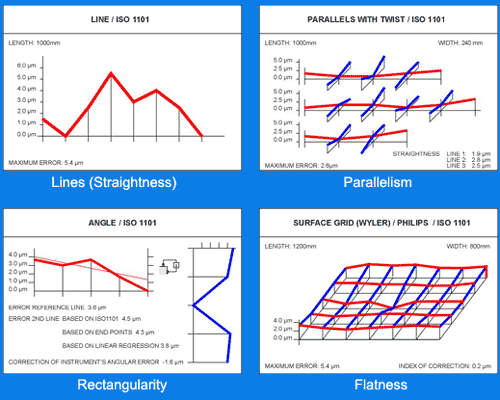

Sample LevelSoft Applications:

LevelSoft ISO 1101 Features:
Direct input from LevelMeter 2000 or LevelTronic
Multi channel input A, or B, A + B, A - B
Differential mode (A - B) with moving and reference levels
Windows 95, 98, ME, NT, 2000 and XP Compatible
Full printout of reports and calibration certificates
Exporting the measured values via data files
Orthogonal display or colorbar flatness charts
Includes Software, Cables, Power Supply & Manuals

5 Year Warranty


If you would like more information or a flyer on the LevelSoft ISO 1101, simply fill out our Information Request Form, or contact our office.
