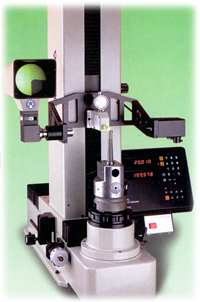

Combining a
high quality optical projector screen and a powerful new multifunction
digital readout system, our optical tool presetter offers
a superior tool for the shop floor, able to handle the most
precise CNC tooling setups.
Designed and
manufactured in Switzerland by Trimos, the Optical Tool Presetter
is a top of the line alternative to our Shop
Floor Presetters and used for the most demanding CNC work.
Optical
Tool Presetter Features:
Non-Contact
measuring 10x
or 20x Projector Screen Tool
Check Digital Readout Unit built-in
vacuum tool retention ISO
50 Taper pot (adapter's available) Resolution
to 0.00001" (0.0001mm)
Presetter
Specifications
X
Coordinate Range:
6"/150mm
(max dia. 12"/300mm)
Y
Coordinate Range:
16"/400mm
Maximum
Resolution:
0.00001"/0.0001mm
Spindle
Concentricity:
0.0003"/0.0075mm
Z-Axis
Squareness:
0.0002"/0.005mm
X
Coordinate Accuracy:
Over
6"/150mm =0.0002" (0.005mm)
Y
Coordinate Accuracy:
Over
16"/400mm =0.0004" (0.010mm)
Tool-Chek
Display Unit
Designed
specifically for tool presetting functions, the "Tool-Chek"
is powerful,intelligent and easy to use. It uses the presetter
scale inputs for a XZ display and has a tough membrane keypad
for shop floor use.
Stores
up to 9 set masters and 300 tools in it's database Programmable
tool sequences and CNC magazine location Print
or view actual tool values/deviations Incremental/Absolute
zero functions Direct
Inch/Metric display and conversion Radius/Diameter
measuring functions Angle
and Vertex point measurement Displays
X Axis in Radius or Diameter Associate
tool crib storage locations to tools Maps
tools to CNC "pot" locations Direct
RS-232 output for computer or printer Password
protection Optional
optical edge detection input
If you would like
more information or a flyer on our Optical Presetters,
simply fill out our Information Request
Form, or contact our office.
