Quadra-Test Indicator

Fowler’s new QuadraTest multimode electronic test indicator offers unrivaled measuring versatility in an electronic test indicator!

Made with the latest sensor technology, the new indicator allows for 4 Measuring Modes; Min, Max, TIR and Direct and 4 Measuring Resolutions in both inch and metric values.

Dual Digital and Analog displays, as well as a 360° rotating dial face
mean excellent ease of use.

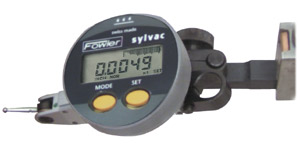

Shown here in the Horizontal measuring position. The test indicator has standard dovetails through the body.


The QuadraTest features four measuring modes (Min, Max, TIR and direct), with an RS-232 interface that is water, oil and coolant resistant to IP65 compliancy.

The QuadraTest also features true inch/metric conversion, a 1-1/2" diameter dial face that rotates a FULL 360° with both a bar graph and numeric digital display.

It also meets or exceeds Din/ISO standards (maximum error on .00005" scale at full range: .00004"


Fowler QuadraTest Features:

4 measuring modes: Min, Max, TIR and Direct
4 measuring resolutions
True Inch/Metric conversion
Water, oil and coolant resistant to IP65
1-1/2" diameter dial face rotates a full 360°
Bar graph and numeric digital display
Meets or exceeds Din/ISO Standards
(Maximum error on .00005" scale at full range: .00004")
Available with 1/2" or extra-long 1-7/16" contact point

Range of .080" (virtual 0—40—0) on the .0005" and .00005" scale
Range of 2mm (virtual 0—1—0 reading) on the 0.01mm and 0.001mm



If you would like more information or a flyer on the QuadraTest Indicator, simply fill out our Information Request Form, or contact our office.
