Fowler-Bowers SnapMic

Combines Best of Analog & Digital Gages

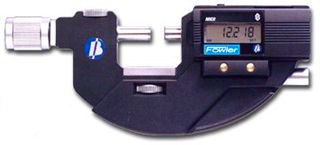

Fowler introduces the new Bowers Indicating Snap Micrometer.

Developed for in-process use in a shop enviroment, the SnapMic combines the versatility and ease of

use of a standard analog indicating micrometer with the accuracy and resolution of our electronic capacitive system. All for less price than a mechanical unit!



Fowler SnapMic Features:

Measuring Range of 0-1.25" and 1.25"- 2.50"
Retractable Anvil Travel of 0.275" (7mm)
Non-rotating spindle with carbide tips
Large, easy to read digital display
Resolution to 0.00005" (0.001mm)
Replacceable tips for special measuring functions
State of the Art digital technology
Hand held or bench operation (optional)
Direct RS-232 Serial output


A wide variety of anvil kits such as disc and thread measuring wires turn the SnapMic into a very versatile gage. Special anvils are available upon request...

Accuracy Specifications:
Model #
#54-245-777
#54-245-780
Range
0-1.25" (0-30mm)
1.25"--2.50" (30-60mm)
Accuracy
0.00015" (4um)
0.00020" (5um)

5 Year Warranty

If you would like more information or a flyer on the SnapMic, simply fill out our Information Request Form, or contact our office.
