Indicator Calibration System

A must for any company that uses a large amount of dial gages, the Sylvac indicator calibration system can save many thousands of dollars yearly in outside dial gage calibration costs.

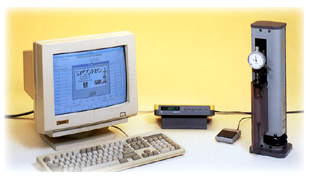

A combination of hardware and software, the system can readily inspect and certify any type of dial gage, electronic indicator or test lever indicator.

Position stand in either a horizontal or vertical position for maximum indicator range and accurate calibration at high resolution. Dial gages with a 8mm or 3/8" dia. may be mounted as well as test indicators according to DIN2270. Quick clamping by knurled knob. Testing system is according to NIST certified ABBE principle.

System Specifications:

Thermal shield for reference probe.
Suitable for testing dial gages and test indicators.
Fine adjustment handwheel 30:1 (one revolution = .002")
Rough adjustment handwheel 5:1 (one revolution = .06")

The Indicator Calibration System can be used with either our D-80 Display system or our advanced Sylvac D-100 Probe Amplifier. An optional windows based software package allows for inspection certificates to be stored and printed with linear accuracy charts.


If you would like more information on the Indicator Calibration System, simply fill out our Information Request Form, or contact our office.
