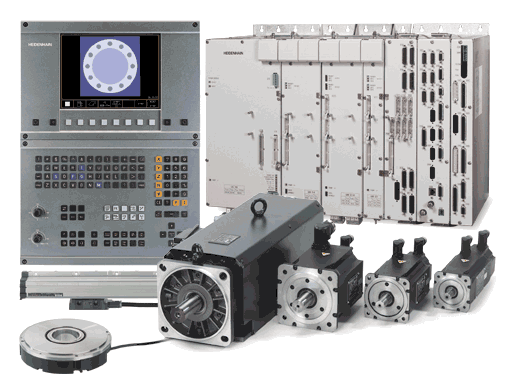

Compact
inverters provide the power supply and the power electronics for
all axes and one spindle within a single unit. They are designed
for machines with up to 3 or 4 axes plus one spindle with a
spindle power rating up to 15 kW.
Modular
inverters:
Modular
inverters consist of:
Power
supply unit for 22 kW to 45 kW
Power
supply units for axes and spindle(s)
Modular
inverters are designed for machines with up to 9 axes plus spindle
with a spindle power rating up to 30 kW.
Feed and
spindle motors:
Feed
motors with 1.5 Nm to 44 Nm and spindle motors with 4.5 kW to 30
kW are available for connection with HEIDENHAIN inverters.
