LIDA

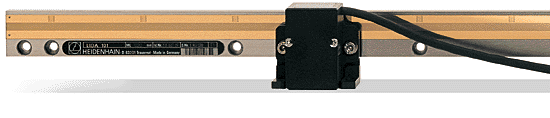

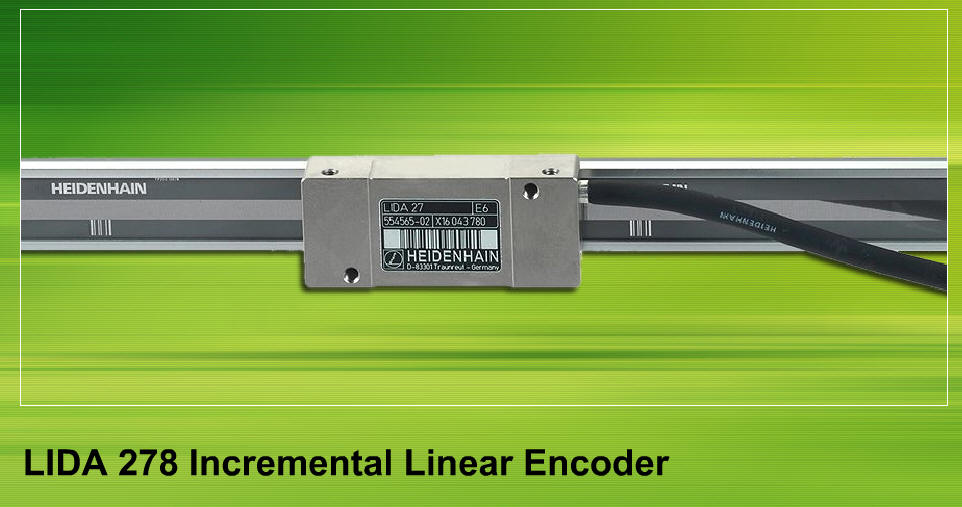

LIDA incremental linear encoders use AURODUR steel scales with grating periods of 40 µm as measuring standard. The new LIDA models are relatively insensitive to scale contamination and unevenness of the mounting surface.

	LIDA 101 LIDA 171 LIDA 181	LIDA 105 LIDA 175 LIDA 185	LIDA 107 LIDA 177 LIDA 187
Measuring standard	AURODUR steel scale tape
Output signals	LIDA 101:  11 µAPP LIDA 171:  TTL  LIDA 181:  1 VPP	LIDA 105:  11 µAPP LIDA 175:  TTL  LIDA 185:  1 VPP	LIDA 107:  11 µAPP LIDA 177:  TTL  LIDA 187:  1 VPP
Signal periods	40 µm LIDA 171: 4 µm	40 µm LIDA 175: 4 µm	40 µm LIDA 177: 4 µm
Accuracy grades	± 5 µm; ± 3 µm	± 5 µm	± 15 µm
Recommended measuring steps	1 µm to 0.1 µm LIDA 171: 1 µm	1 µm to 0.1 µm LIDA 175: 1 µm	1 µm to 0.1 µm LIDA 177: 1 µm
Measuring lengths ML	220 to 2040 mm	140 to 30040 mm	240 to 6040 mm
Reference mark	One, position selectable or distance-coded

LIDA 101, LIDA 171, LIDA 181



LIDA 101:  11 µAPP LIDA 171:  TTL  LIDA 181:  1 VPP
The AURODUR steel scale tape of the LIDA 101/LIDA 171/LIDA 181 is cemented into a steel scale carrier and then calibrated. A calibration chart is supplied with every scale.

LIDA 105, LIDA 175, LIDA 185



LIDA 105:  11 µAPP LIDA 175:  TTL  LIDA 185:  1 VPP
The LIDA 105/ LIDA 175/LIDA 185 is intended for larger measuring lengths up to 30 m (100 ft). Here the one-piece AURODUR steel scale tape is inserted into a scale housing consisting of several standard sections; it is then stretched to a defined tension and fixed at both ends to the machine bed.

LIDA 107, LIDA 177, LIDA 187



LIDA 107:  11 µAPP LIDA 177:  TTL  LIDA 187:  1 VPP     The LIDA 107/LIDA 177/LIDA 187 also consists of a one-piece steel tape. In this case, however, it is guided in a scale-tape carrier and is rigidly connected at its center to the machine. Measuring lengths up to 6 m (237 in.) are available.
