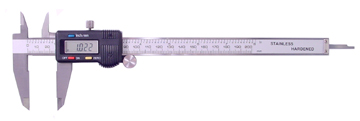

Standard Digital Caliper
- Four-way measurement
- Manual power on/off
- Zero setting at any position
- Metric/ Inch system interchange at any position
- With data output interface
|
|
|
|
Item
NO. |
Range (mm/in) |
Resolution (mm/in) |
|
MD-CS-36 |
150/6 |
0.01/0.0005 |
|
MD-CS-38 |
200/8 |
0.01/0.0005 |
|
MD-CS-312 |
300/12 |
0.01/0.0005 |
|
|
“ABS”, "HOLD", "MODE" or "TOL"

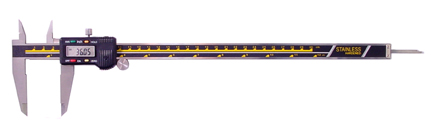

Digital Caliper
- Manual power on/off
- Zero setting at any position
- Metric/Inch system interchange at any position
- With data output interface
- ABS, HOLD, MODE, or TOL functions
|
|
|
|
Item NO. |
Range (mm/in) |
Resolution (mm/in) |
|
MD-CS-46A |
150/6 |
0.01/0.0005 |
|
MD-CS-48A |
200/8 |
0.01/0.0005 |
| MD-CS-46H |
150/6 |
0.01/0.0005 |
| MD-CS-48H |
200/8 |
0.01/0.0005 |
| MD-CS-46M |
150/6 |
0.01/0.0005 |
| MD-CS-48M |
200/8 |
0.01/0.0005 |
| MD-CS-46T |
150/6 |
0.01/0.0005 |
|
MD-CS-48T |
200/8 |
0.01/0.0005 |
|
 |

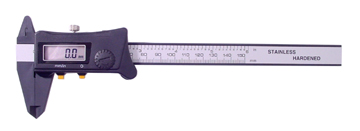

Carbon Fiber Composites Digital Caliper
- Auto power on/off
- Metric/inch system interchange at any position
- Zero setting at any position
|
|
|
Item NO.
|
Range (mm/in)
|
Resolution
(mm/in)
|
MD-CC-26
|
150/6
|
0.1/0.005
|
|
 |
Pocket Digital Snap Caliper
- Easy operation
- Manual power on/off
- Metric/inch system interchange at any position
- Zero setting at any position
- With data output interface
|
| |
|
Item NO. |
Range (mm/in) |
Resolution (mm/in) |
|
MD-CP-312 |
30/1.2 |
0.01/0.0005 |
|
 |
Digital Scales
- Manual power on/off
- Zero setting at any position
- Metric/inch system interchange at any position
- With data output interface
- With display predetermination function
|
|
|
|
Item NO. |
Range (mm/in) |
Resolution (mm/in) |
|
MD-SS-36 |
150/6 |
0.01/0.0005 |
|
MD-SS-38 |
200/8 |
0.01/0.0005 |
MD-SS-312
|
300/12 |
0.01/0.0005 |
|
 |
Digital Micrometers
- Auto power on/off
- Metric/Inch system interchange at any position
- Zero setting at any position
- Relative measurement and absolute
- Measurement interchange at any position
- With display predetermination function
- With data holding function
- May be used to determine if the value of the
measured item’s dimension is in the predetermined range of the micrometer
|
|
|
|
Item NO. |
Range (mm/in) |
Resolution (mm/in) |
|
MD-MS-71 |
0-25/0-1 |
0.001/0.00005 |
|
MD-MS-72 |
25-50/1-2 |
0.001/0.00005 |
|
MD-MS-73 |
50-75/2-3 |
0.001/0.00005 |
|
 |
Digital indicators
- Zero setting at any position
- Metric/Inch system interchange at
any position
- With data output interface
- Data holding function
- Fast tracing of minimum value or
maximum value during measurements
- Auto power on/off
|
|
|
Item NO. |
Range (mm/in) |
Resolution (mm/in) |
|
MD-IM-302 |
0-10/0.4 |
0.01/0.0005 |
|
MD-IM-304 |
0-30/1.2 |
0.01/0.0005 |
|
 |

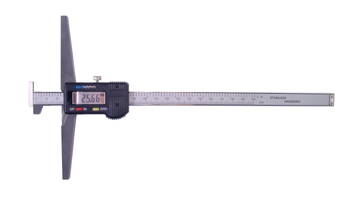

Digital depth gages
- Manual power on/off
- Metric/Inch system interchange at any position
- Zero setting at any position
- With data output interface
- For measuring the width of a groove and the
length between grooves
|
|
Item NO.
|
Range (mm/in) |
Resolution (mm/in) |
|
MD-DS-36 |
150/6 |
0.01/0.0005 |
MD-DS-38
|
200/8 |
0.01/0.0005 |
|
 |

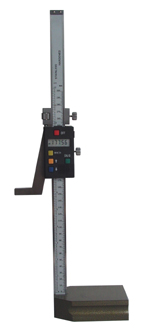

Digital Height Gages
- Manual power on/off
- Zero setting at any position
- Metric/Inch system interchange at any position
- With carbide tipped scriber, it’s easy for
scribing
- With display predetermination function
|
|
|
Item NO. |
Range (mm/in) |
Resolution (mm/in) |
|
MD-HS-412 |
300/12 |
0.01/0.0005 |
|
MD-HS-420 |
500/20 |
0.01/0.0005 |
|
