Fiber optic illuminator
IL-88-FOI or IL-22-FOI
- Heavy duty metal construction.
- 150W 21V halogen bulb (replacement
part # IL-RA-FB).
- See table below to determine
differences.
|
Model Number |
IL-88-FOI |
IL-22-FOI |
Power/Frequency |
120VAC 60Hz |
220VAC 60Hz |
Fuse |
2 Amps "Slo-Blo" |
2 Amps "Slo-Blo" |
Lamp Type |
EKE 21 Volt 150 Watt halogen |
EJA 21 Volt 150 Watt halogen |
Lamp Life |
200 Hrs/Min |
40 Hrs/Min.* |
Lamp Color Temperature |
3200K (at full output) |
3350K ( at full output) |
Output Aperture |
5/8" (.625 ID) standard |
5/8" (.625 ID) standard |
Dimensions |
7.5"L x 7"W x
6.5"H |
7.5"L x 7"W x
6.5"H |
Weight |
7.5 lbs. |
7.5 lbs. |
Warranty |
1 year (except on bulb) |
1 year (except on bulb) |
* Longer lamp life obtainable if used at 50% output

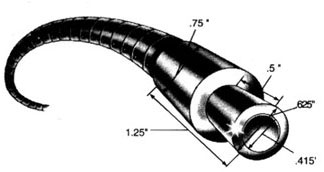

Annular ring light guide
IL-97-AN or
FC-AN-26
- 36" in length.
- High quality glass fibers.
- Provides continuous 360 degree
shadow-free uniform illumination of white light.
- See table below to determine
differences.
- Must be used with Fiber Optic
Illuminator.
|

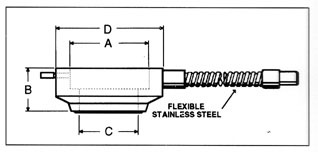

Part number |
A |
B |
C |
D |
IL-97-AN |
2.3" |
1.1" |
2.0" |
3.2" |
FC-AN-26 |
2.6" |
1.5" |
2.0" |
3.6" |
![Polarizer diagram.JPG (37310 bytes)](Images/Polarizer_diagram.JPG) |
Annular
Ring Polarizer
IL-AN-PLZR
|
|
Fluorescent ring lamp
IL-88-TL
- High quality fixed output.
- 115VAC 60 Hz 12Watt bulb.
- Simulating natural white day light,
provides 360 degrees of shadow-less illumination.
- App. bulb life is 400 hrs.
|
Special Notice:
A ring adapter or auxiliary lens is needed for the
products listed above.
![double pipe light.jpg (5591 bytes)](Images/double_pipe_light.jpg) |
Double Pipe Light
IL-97-DPL
- Alternative lighting solution
requiring high intensity, low temperature lighting.
- 18" in length.
- "Stay-put" positioning.
- Shown with Fiber
Optic Illuminator.
- Excellent for
precision lighting.
- We also carry
Single Pipe Light (FC-SP-18) 18" in
length.
|
Dual Halogen Lamp
IL-27-DHL
- "Stay-put" gooseneck arms,
can be used individually or together.
- Separate
- Replacement bulb (IL-27-DHLB).
|
|
|
|
