CUSTOM SQUARE or RECTANGULAR PALLET FIXTURES

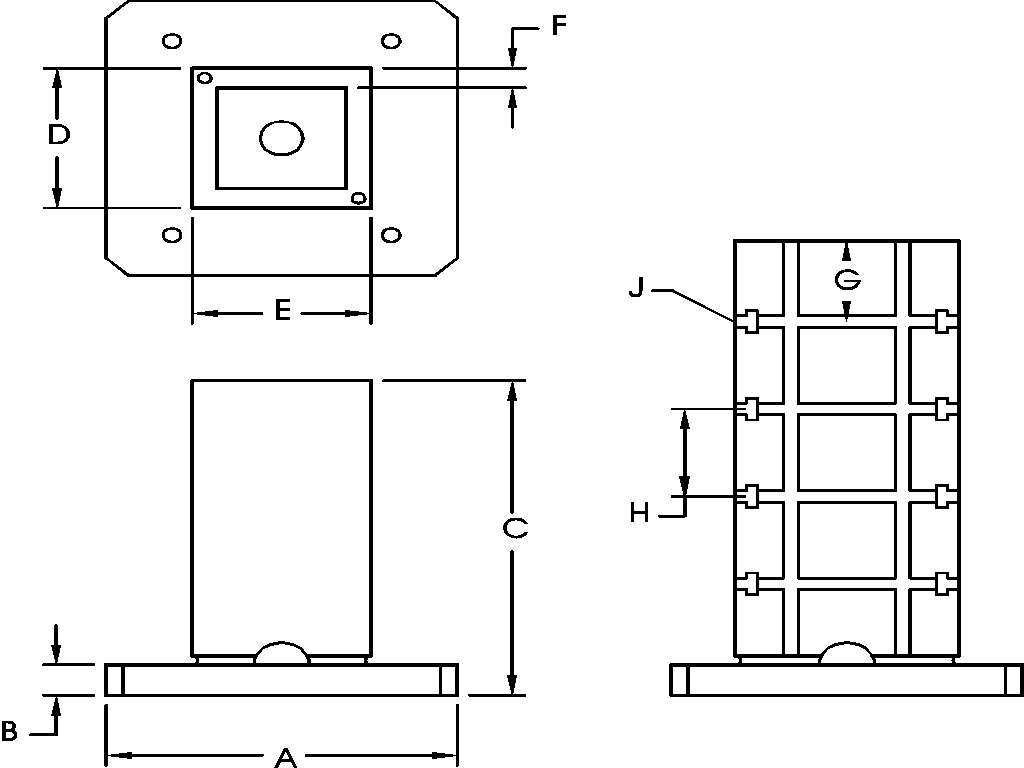

Using the labeled dimensions in the diagram above, fill in the dimensions required for your custom pallet fixture.  Use the notes area at the bottom for any explanations you feel are needed to complete the description of  pallet fixture you want us to build.  Be as accurate and detailed as you can.  If you require a special shape or hole pattern, please e-mail us

Also available with t-slots.  If no t-slots are required, leave dimensions G, H & J blank.

Standard Construction:  (1) Made from one piece, class 40 cast iron,  (2) Base and sides milled flat, square & parallel  to 0.001" in 12",   (3) Base can have DIN or JIS mounting holes.

DIMENSION

SIZE (Specify mm or in)

A


B


C

D

E

F

G
To Centerline

H

J
T-Slot Size
