Trimos Height Master Gage

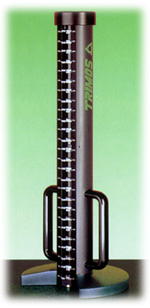

Made in Switzerland by Trimos, the Height Master Gage is available in four models -- inch and metric -- 25" or 650mm and 41" or 1050mm. With the todays demand for frequent test certifications, the Height Master is used for final checking in the laboratory, production or on the shop floor. A rugged, stabilized housing protects the patented measuring column. With hard chrome plated measuring faces for topside and underside checking, the unit stands on three supporting pads made of hardened stainless steel, ground and lapped.

Height Master Features:
Eliminates gage block "stacking" errors Greatly speeds up inspection work Patented co-planar lapped measuring faces Side handles for easy portability Can be used for Height Gage Calibration Includes inspection certificate & warranty
The Trimos Height Master was developed to meet the high quality requirements of international ISO-9000 & Q-9000 standards.

	Shown checking a Trimos Vertical III electronic height gage, the Height Master is the ideal system for calibrating and inspecting any type of height gage found in the shop, thus saving much expense on outside calibration costs.

Specifications	53-186-025 & 600	53-186-041 & 100
Measuring range	0 -- 25" (0 -- 650mm)	0 -- 41" (0 -- 1050mm)
Parallelism of faces	.000048" (1.2pm)	.00006" (1.5pm)
Measuring uncertainty	.00008" (2pm)	.00012" (3pm)
Weight	57.2 lbs. (26kg)	79.2 lbs. (36kg)

If you would like more information or a flyer on the Height Master Gage, simply fill out our Information Request Form, or contact our office.
