Heidenhain angle encoders- Versions: RON RON ROD ROD RCN





Sealed Angle Encoders

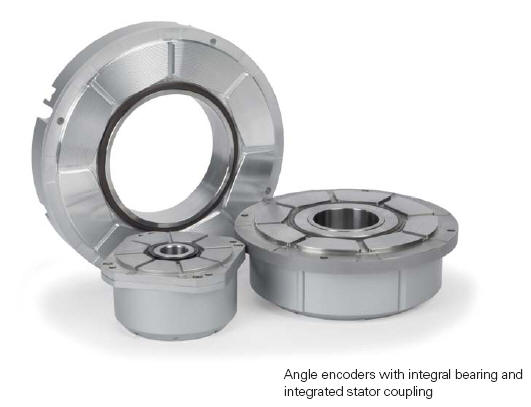

Angle Encoders with Integral Bearing, Hollow Shaft and Integral Stator Coupling: RON and RCN

The stator coupling is configured so that during angular acceleration it absorbs only the torque resulting from bearing friction. The HEIDENHAIN angle encoders RON and RCN are therefore characterized by excellent dynamic performance. Since the stator coupling is integrated, the specified system accuracy includes the error of the shaft coupling.

Further advantages:
 Short overall length and small space requirement
 Hollow shafts with diameters up to 60 mm for supply lines, etc.
 Simple mounting



Angle Encoders with Integral Bearing and Solid Shaft: ROD

Angle encoders with stub shafts are particularly well suited for applications with high rotational speeds or where large mounting tolerances are required. Precision couplings permit axial tolerances up to ± 1 mm for shaft coupling.




Selection aid: Sealed Angle Encoders

Output signals Coupling, shaft Accuracy Model
Incremental With integrated stator coupling and hollow shaft To ± 2.5" RON
To ± 0.2" RON
With separate coupling and solid shaft To ± 2.5" ROD
To ± 1" ROD
Absolute With integrated stator coupling and hollow shaft To ± 2" RCN

  • Angle encoder with an integrated stator coupling

      System accuracy Mechanically perm. speed Incremental signals
    RON ± 5 3000 min-1 1 Vss
    RPN ± 2 1000 min-1 1 Vss
    RCN ± 1 " 1000 min-1 1 Vss
    Because of the design and mounting of the stator coupling, it must only absorb that torque caused by friction in the bearing during angular acceleration of the shaft.

     Advantages:

    • Compact size for limited installation space
    • Hollow shaft diameters up to 100 mm for leading power cables, etc.
    • C axes on lathes
    • Simple mounting



    Angle encoders with integral bearing, for separate shaft coupling
      System accuracy Mechanically perm. speed Incremental signals
    RON 200 ± 2,5 " to ± 5 " 3000 min-1 1 Vss
    RON 700 ± 2 " 1000 min-1 1 Vss
    RON 800/ RPN 800 ± 1 " 1000 min-1 1 Vss
    RON 900 ± 0,4 " 100 min-1 11 µAss





    Angle encoders for separate shaft coupling
      System accuracy Mechanically perm. speed Incremental signals
    RON 200 ± 2,5 " to ± 5 " 3000 min-1 1 Vss
    RON 700 ± 2 " 1000 min-1 1 Vss
    RON 800/ RPN 800 ± 1 " 1000 min-1 1 Vss
    RON 900 ± 0,4 " 100 min-1 11 µAss

    Angle encoders for separate shaft coupling
      System accuracy Mechanically perm. speed Incremental signals
    ROD 200   ± 5 " 1000 min-1 1 Vss
    ROD 700   ± 2 " 1000 min-1 1 Vss
    ROD 800 ± 1 " 1000 min-1 1 Vss
    ROD angle encoders with solid shaft are particularly suited to applications where higher shaft speeds and larger mounting tolerances are required. The shaft couplings allow axial tolerances of ± 1 mm.





    Angle encoders without integral bearing

    ERA
    ERO

    Angle encoders without integral bearing (modular angle encoders) are intended for integration in machine elements or apparatuses. They are suited for the following requirements:
    • Large hollow shaft diameter (up to 10 m with a scale tape)
    • High shaft speeds up to 40000 rpm
    • No additional starting torque from shaft seals
    • Segment solutions



    Search result (8)
    Name Line count System accuracy Mech. permissible speed n
    ERA 780C 36000 ± 3,5'' 500 min-1
    ERA 780C 45000 ± 3,4'' 500 min-1
    ERA 780C 90000 ± 3,2'' 500 min-1
    ERA 780C     500 min-1
    ERA 781C   500 min-1
    ERA 781C   500 min-1
    ERA 781C 160°: 20000   500 min-1
    ERA 781C     500 min-1

























  •
