Heidenhain's solution to the PROKIT for a Bridgeport type mill or a Lathe machine


Knee Mill Kits
Retrofit a Mill or Lathe
Digital Readout Systems For Knee Mills and Lathes

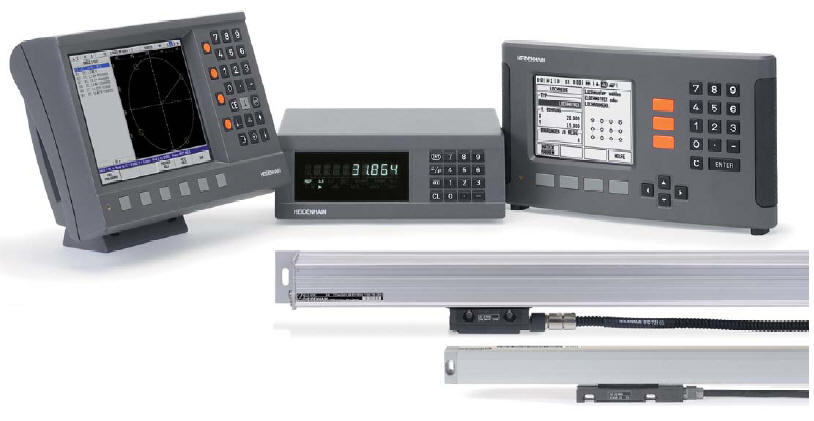

The HEIDENHAIN RETROKIT Knee Mill Package:
RETROKIT includes a two axis-digital readout (ND 780) that provides clear, easily read position values, two sealed linear scales complete with armor shielded cables and custom design brackets and arm/tray assembly for easy installation.

The ND 780 Digital Readout Unit Features:

Resolutions 0.0005 inches to 0.000 05 inches or better
Inch/metric display steps
Scaling factor
2 datum points, 1 tool
Set-up functions for "edge" and "centerline" with the tool
Linear and nonlinear compensation, 16 points
Reference mark evaluation
Distance to go
Error detection circuitry
Full keypad
Bolt holes (circular/linear)


Standard Sizes Available:
12x30 12X36 16X30 16x36 16x40







The HEIDENHAIN PROKIT Lathe Package: RETROKIT includes a two axis-digital readout (ND 730) that provides clear, easily read position values, two sealed linear scales complete with armor shielded cables and custom designed brackets and arm/tray assembly for easy installation.

The ND 730 Digital Readout Unit Features:

Resolutions 0.0005 inches to 0.000 05 inches or better
Inch/metric conversion
Scaling factor
2 datums, 9 tools
Linear/non-linear compensation, 16 points
Reference mark evaluation
Distance to go
Separate or sum display for Z and Zo
Error detection circuitry
Radius/diameter display

Standard Sizes Available:
40", 60", and 80" center lathes, combined with cross slide measurements of 6", 8", 10", 12", 14", and 16".





Sealed Linear Encoders Feature:

LC 603 C Full-Profile Scale
LS 303 C Slim-Line Scale
Grating Period: 20µm (50 pulses per millimeter)
Accuracy Grade: ± 10 µm
Recommended Measuring Step: to 5 µm (0.0002 inches)
Reference Marks: Distance-Coded
IP 53 rated (ideal for shop floor environments)



Mill Hardware Includes:
Universal-fit bracket assembly
Steel guard (for X-axis)
Cantilever arm and tray assembly
All necessary mounting hardware



Lathe Hardware Includes:
Universal-fit bracket assembly
X-axis backing bar/guard
Arm and tray assembly
All necessary mounting hardware
