Incremental Rotary Encoders with Integral Bearing and Separate Shaft Coupling

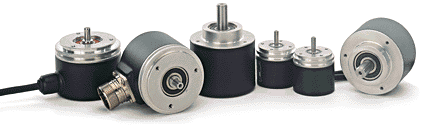

From left to right: ROD 400 with synchro-flange (2x), ROD 400 with clamping flange, ROD 1000 (2x), ROD 400 with clamping flange

HEIDENHAIN's ROD family of rotary encoders are characterized by their rugged design and compact dimensions. ROD encoders are coupled to the drive or the spindle via a separate rotor coupling. Axial motion and misalignment (radial and angular offset) between the encoder shaft and the drive shaft are compensated by the coupling.
