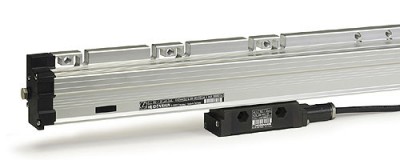

LC 192F - For Fanuc absolute position measurement

Absolute linear encoders High positioning accuracy and traversing speed through single-field scanning High vibration rating Horizontal mounting possible
Specifications: LC 192F
Measuring Methods Absolute
Measuring standard DIADUR glass scale with absolute track and incremental track
Thermal expansion coefficient αtherm ≈ 8 x 10-6 K-1
Accuracy grade
Measuring lengths (ML) in mm
Absolute position values Serial Interface Fanuc 01
Power supply 5 V 5 % at linear encoder/< 300 mA (without load)
(power supply possible via Remote Sense)
Electrical connection Sep. adapter cable (1 m/3 m/6 m/9 m) connectable to mounting block
Max. cable length Upon request
Max. traversing speed 180 m/min
Required moving force ≤ 4 N
Vibration (55 to 2000 Hz) ≤ 200 m/s (EN 60068-2-6)
Shock (11 ms) ≤ 300 m/s (EN 60068-2-27)
Acceleration ≤ 100 m/s in measuring direction
Operating temperature 0 to 50 C
Protection (IEC 60529) IP 53 when installed according to the mounting instructions
IP 64 if compressed air is connected
Weight 0.4 kg + 3.3 kg/m measuring length








Mounting  Instructions for the HEIDENHAIN
LC 192F Series Absolute Scale
