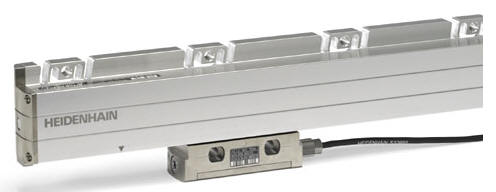

LC 193F - For Fanuc absolute position measurement

Absolute linear encoders for measuring steps to 0.1 μm (resolution to 0.005 μm), High positioning accuracy and traversing speed through single-field scanning, High vibration rating, Horizontal mounting possible

Specifications: LC 193F
Measuring Methods Absolute
Measuring standard DIADUR glass scale with absolute track and incremental track
Thermal expansion coefficient αtherm ≈ 8 x 10-6 K-1
Accuracy grade 5 m
Measuring lengths (ML) in mm
Absolute position values Serial Interface Fanuc 02
Resolution 0.05 m
Cutoff frequency -3dB ≥ 150 kHz
Power supply 3.6 to 5.25 V/< 300 mA
Electrical connection Sep. adapter cable (1 m/3 m/6 m/9 m) connectable to mounting block
Max. cable length 30 m
Max. traversing speed 180 m/min
Required moving force ≤ 4 N
Vibration (55 to 2000 Hz) ≤ 200 m/s (EN 60068-2-6)
Shock (11 ms) ≤ 300 m/s (EN 60068-2-27)
Acceleration ≤ 100 m/s in measuring direction
Operating temperature 0 to 50 C
Protection (IEC 60529) IP 53 when installed according to the mounting instructions
IP 64 if compressed air is connected
Weight 0.4 kg + 3.3 kg/m measuring length








Mounting  Instructions for the HEIDENHAIN
LC 193F Series Absolute Scale
