Sealed linear encoders of the LF product family are characterized by measuring standards with relatively fine grating periods and high accuracy grades.
These linear encoders make it possible to use measuring steps as fine as 0.1 µm.

AMI HOME PAGE

LF 183 for absolute position measurement

Heidenhain PT 880 Digital Readout






Call Toll Free 1 888 354 2525



Name Accuracy grade Incremental signals Signal period

  LF 183C

1VPP 4µm

   LF 183

1VPP 4µm


Incremental linear encoder for measuring steps to 0.1 µm
High positioning accuracy through single-field scanning
Thermal behavior similar to steel or cast iron
High vibration rating
Horizontal mounting possible

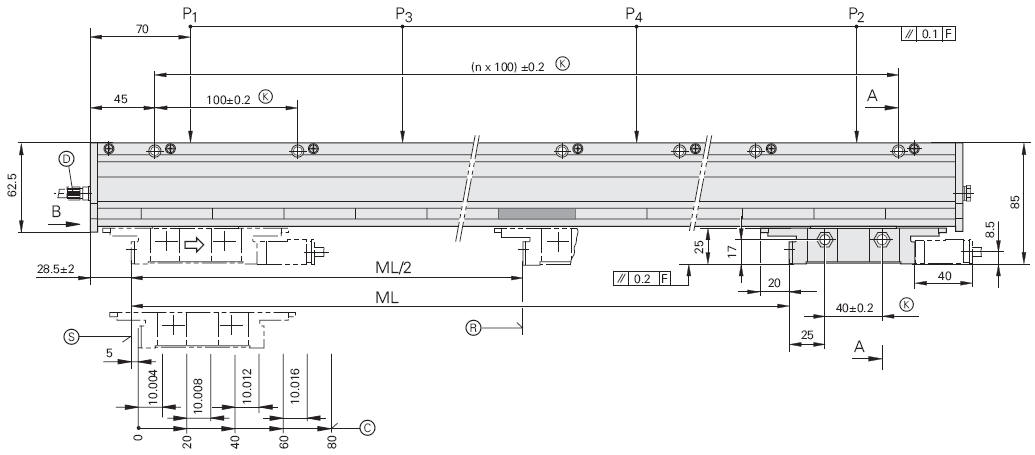

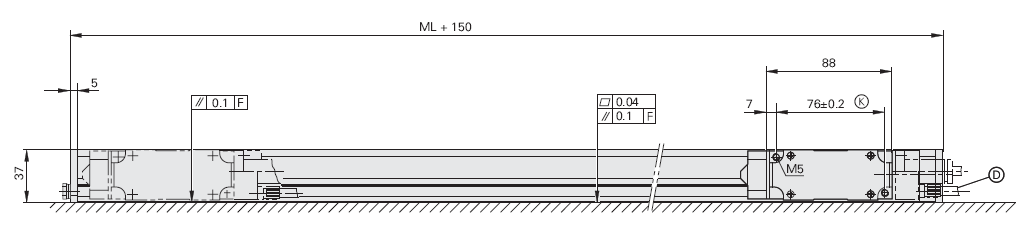

Specifications: LF 183







Mounting  Instructions for the HEIDENHAIN
LC 183 Series Absolute Scale
