UNIVERSAL RIGHT ANGLE IRONS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.




  • Useful for clamping work in multiple positions.

  • Ideal for squaring operations.

  • Made of high quality, fine grained, stress relieved cast iron.

  • All faces and ends finished square and parallel.

  • Machined finish - Square and parallel within 0.002" per 6".

  • Ground finish - Square within 0.0005" per 6". Parallel within 0.00025" per 6".

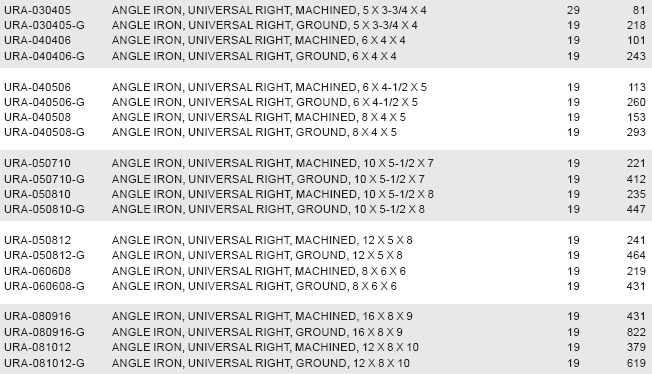

MODEL # A B C D E WT (#)
MACHINED GROUND
URA-030405 URA-030405-G 3-3/4" 4" 5" 3/4" 5/8" 10
URA-040406 URA-040406-G 4" 6" 7/8" 11/16" 13
URA-040506 URA-040506-G 4-1/2" 5" 16
URA-040508 URA-040508-G 4" 8" 1" 3/4" 21
URA-050710 URA-050710-G 5-1/2" 7" 10" 1-1/8" 7/8" 37
URA-050810 URA-050810-G 8" 40
URA-050812 URA-050812-G 5" 12" 1-1/4" 1" 44
URA-060608 URA-060608-G 6" 6" 8" 7/8" 3/4" 32
URA-080916 URA-080916-G 8" 9" 16" 1-3/8" 1-1/8" 94
URA-081012 URA-081012-G 10" 12" 1-1/4" 1" 75







Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
E-mail: sales@auto-met.com

Back


SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
