BOX PARALLELS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.






  • Made of high quality fine grained, stress relieved cast iron.


  • All faces and ends finished square and parallel.


  • Machined finish - Size ± 0.015". Square and parallel within 0.002" per 6".


  • Ground finish - Size ± 0.002". Square and parallel within 0.0005" per 6".


MODEL # A B C D # OF
WEBS
WT(#)
MACHINED GROUND

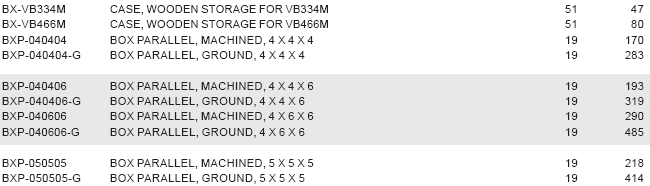

BXP-040404 BXP-040404-G 4" 4" 4" 5/8" 0 12
BXP-040406 BXP-040406-G 6" 3/4" 16
BXP-040606 BXP-040606-G 6" 20
BXP-050505 BXP-050505-G 5" 5" 5" 17

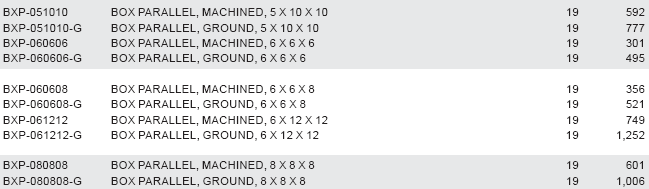

BXP-051010 BXP-051010-G 10" 10" 1 73
BXP-060606 BXP-060606-G 6" 6" 6" 0 25
BXP-060608 BXP-060608-G 8" 1 35
BXP-061212 BXP-061212-G 12" 12" 105
BXP-080808 BXP-080808-G 8" 8" 8" 5/8" 2 71








SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
SPECIAL SIZES AVAILABLE UPON REQUEST
