PRECISION STEEL V-BLOCKS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.


VB-466, VB-334 & VB-222 Precision Steel V-Blocks
VB-466, VB-334 & VB-222


Precision Steel V-Block Drawing
  • Provides a quick, accurate & positive means of holding workpieces for layout, machining, grinding or inspection.

  • Solid one-piece steel construction, hardened to Rc 58-62.

  • One reversible, swing-away clamp is provided with each v-block.

  • Side slots allow easy clamping to almost any work surface.

  • SineSet® models bolt directly to SineSet® sine plate or compound sine plates of the same series. S1 models also bolt to the AP-664-S1 90° conversion plate.

  • Available in both 60° and 90° models and as single v-blocks or matched pairs.

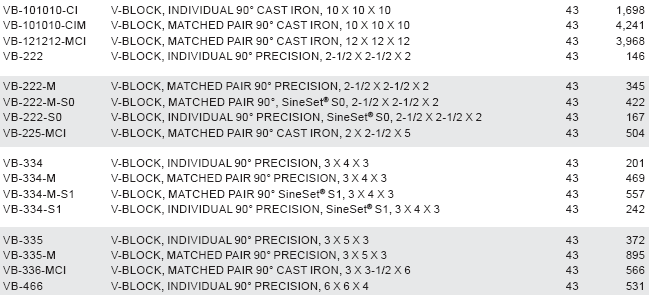

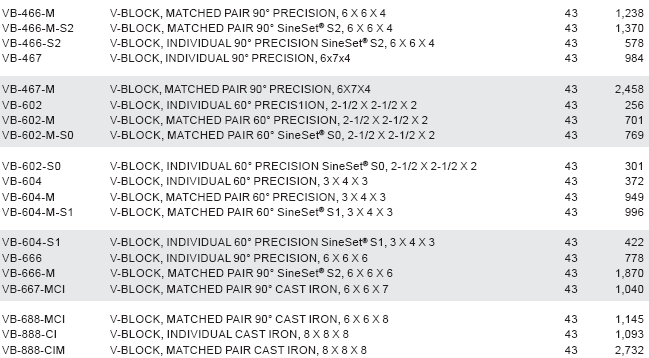

90° MODELS


MODEL # SineSet®
SERIES		 L W H VEE
CAPACITY		 SQUARE &
PARALLEL		 WT (#)
SINGLE PAIR SINGLE PAIR
SineSet® COMPATIBLE
VB-222-S0 VB-222-M-S0 S0 2-1/2" 2-1/2" 2" 1-5/8" 0.0002" 3 5
VB-334-S1 VB-334-M-S1 S1 3" 4" 3" 2-7/8" 9 17
VB-466-S2 VB-466-M-S2 S2 6" 6" 4" 4-3/8" 33 65
NOT SineSet® COMPATIBLE
VB-222 VB-222-M -- 2-1/2" 2-1/2" 2" 1-5/8" 0.0002" 3 5
VB-334 VB-334-M 3" 4" 3" 2-7/8" 9 17
VB-335 VB-335-M 5" 3-3/4" 11 22
VB-466 VB-466 6" 6" 4" 4-3/8" 33 65
VB-467 VB-467-M 7" 5-1/4" 45 90
VB-666 VB-666-M 6" 6" 4-3/8" 50 100

60° MODELS


MODEL # SineSet®
SERIES		 L W H VEE
CAPACITY		 SQUARE &
PARALLEL		 WT (#)
SINGLE PAIR SINGLE PAIR
SineSet® COMPATIBLE
VB-602-S0 VB-602-M-S0 S0 2-1/2" 2-1/2" 2" 1-3/8" 0.0002" 3 5
VB-604-S1 VB-604-M-S1 S1 3" 4" 3" 2-1/8" 8 15
NOT SineSet® COMPATIBLE
VB-602 VB-602-M -- 2-1/2" 2-1/2" 2" 1-3/8" 0.0002" 3 5
VB-604 VB-604-M 3" 4" 3" 2-1/8" 8 15







SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
SPECIAL SIZES AVAILABLE UPON REQUEST
