COMPLETE SineSets®

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

SS-1A Complete SineSet in Wooden Storage Case

  • A complete matched system of bolt-together precision tools in a beautiful, fitted, wooden storage case, at a significant savings.

  • Each set includes a SineSet® sine plate or compound sine plate, a max-C-mag™ magnetic chuck, a vise and an angle plate. The SS-0 sets also include a V-block.

  • Each set comes with all necessary locking straps, rails, handles, bolts, screws & washers, as well as the proper T-handle hex wrench.

  • Sets designated with a number ending in 'F' include a fine pole magnetic chuck.

  • Each of these SineSet® tools & many others, as well as the storage cases, can be purchased separately.

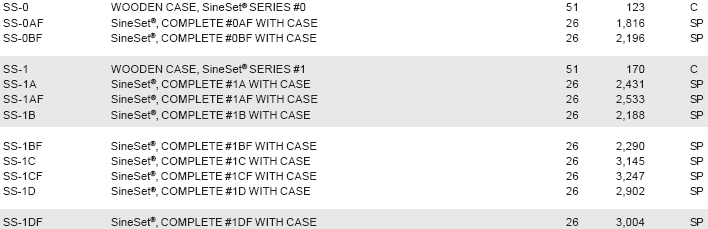

MODEL SineSet®
SERIES
TOOLS INCLUDED WT(#)

SS-0AF

S0 SP-44-S0, AP-334-S0, V-225-S0, VB-222-S0 & MC-44-FP-S0 39
SS-0BF SPC-44-S0, AP-334-S0, V-225-S0, VB-222-S0 & MC-44-FP-S0 42
SS-1A S1 SP-66-S1, AP-664-S1, V-237-S1 & MC-66-S1 79
SS-1AF SP-66-S1, AP-664-S1, V-237-S1 & MC-66-FP-S1 83
SS-1B SP-66-S1, AP-444-S1, V-237-S1 & MC-66-S1 69
SS-1BF SP-66-S1, AP-444-S1, V-237-S1 & MC-66-FP-S1 73
SS-1C SPC-66-S1, AP-664-S1, V-237-S1 & MC-66-S1 88
SS-1CF SPC-66-S1, AP-664-S1, V-237-S1 & MC-66-FP-S1 92
SS-1D SPC-66-S1, AP-444-S1, V-237-S1 & MC-66-S1 78
SS-1DF SPC-66-S1, AP-444-S1, V-237-S1 & MC-66-FP-S1 82





Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
E-mail: sales@auto-met.com

Back


SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
