SINE PLATES

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

SP-66-S1 SineSet Sine Plate
SP-66-S1

SP-126-S2 SineSet Sine Plate
SP-126-S2
  • Made of steel, hardened to Rc 58-62.

  • Sizes up to 6" x 6" have 1/4-20 tapped holes, larger sizes have 3/8-16 tapped holes. Model # SP-555 has T-slots for 1/4" T-bolts.

  • Gage block roll has two 0.200" minute steps for setting small angles with standard gage block sets.

  • Models with the suffix "S0, S1 or S2" are part of the SineSet System; other products with the same part number suffix will bolt directly to these sine plates.

  • A locking strap that always remains below the top surface and two self-storing, hardened & ground rails are standard.



SineSet Sine Plate Dimensional Drawing

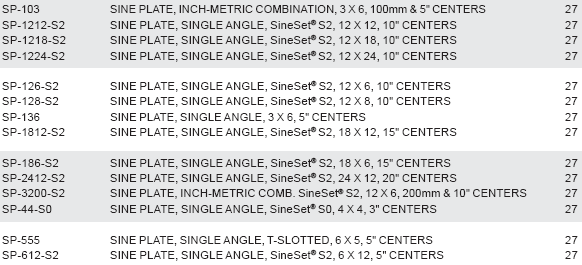

MODEL # SineSet
SERIES
L W H C SQUARE &
PARALLEL
WT (#)
SineSet COMPATIBLE
SP-44-S0 S0 4" 4" 2" 3" 0.0001" 0.0002"

0.0002"

9
SP-66-S1 S1 6" 6" 5" 0.0001" 18
SP-612-S2 S2 12" 2-5/8" 0.0003" 47
SP-126-S2 12" 6" 10" 0.0001" 45
SP-618-S2 6" 18" 3-3/8" 5" 0.0001" 0.0004" 90
SP-186-S2 18" 6" 15" 0.00015" 84
SP-812-S2 8" 12" 2-5/8" 5" 0.0001" 0.0003" 62
SP-128-S2 12" 8" 10" 0.0001" 60
SP-1212-S2 12" 90
SP-1218-S2 18" 3-3/8" 10" 0.00015" 0.0004" 170
SP-1812-S2 18" 12" 15" 0.00015" 167
SP-1224-S2 12" 24" 4" 10" 0.0002" 0.0005" 273
SP-2412-S2 24" 12" 20" 0.0002" 267
NOT SineSet COMPATIBLE
SP-136 --

6"

3" 2" 5"0.0001" 0.0002" 9
SP-555 5" 2-1/4" 17
