COMPOUND SINE PLATES

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.



SPC-66-S1 SineSet Compound Sine Plate
SPC-66-S1


SPC-612-S2

  • Made of steel, hardened to Rc 58-62.

  • Sizes up to 6" x 6" have 1/4-20 tapped holes. Larger sizes have 3/8-16 tapped holes.

  • Models with the suffix "S0, S1 or S2" are part of the SineSet® System; other products with the same part # suffix will bolt directly to these sine plates.

  • Each gage block roll has two 0.200" minute steps for setting small angles with standard gage block sets.

  • Two locking straps that always remains below the top surface and two hardened & ground rails are standard.




SPC-612-S2 SineSet Compound Sine Plate






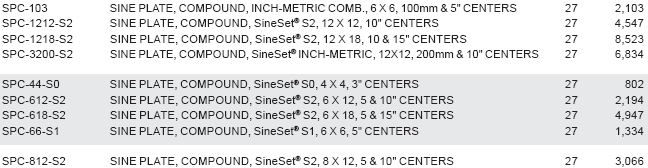

MODEL # SineSet®
SERIES
L W H C1 C2 SQUARE &
PARALLEL
WT (#)
SPC-44-S0 S0 4" 4" 3-1/8" 3" ±0.0001" 3" ±0.0001" 0.0002" 13
SPC-66-S1 S1 6" 6" 5" ±0.0001" 5" ±0.0001" 27
SPC-612-S2 S2 12" 4-3/16" 10" ±0.0001" 0.0003" 71
SPC-618-S2 18" 5-3/8" 15" ±0.00015" 0.0004" 134
SPC-812-S2 12"

12"

8" 4-3/16" 10" ±0.0001" 0.0003" 93
SPC-1212-S2 12" 10" ±0.0001" 137
SPC-1218-S2 18" 5-3/8" 10" ±0.00015" 15" ±0.00015" 0.0004" 257
