PERMANENT MAGNETIC SINE PLATES

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

MSP-66-S1 Permanent Magnetic Sine Plate
MSP-66-S1

MSP-126-FP-S2 SineSet Permanent Magnetic Sine Plate
             MSP-126-FP-S2

  • All chucks use ceramic magnets for superior holding power.


  • Chucks are lubricated and sealed against dirt and liquids.


  • A removable handle, a locking strap, and two rails are included with each chuck.


  • A locking strap and two self-storing, hardened & ground rails are included with each SineSet® sine plate.


  • The gage block roll has two 0.200" minute steps for setting small angles with standard gage block sets.


  • Models with the suffix "S0, S1 or S2" are part of the SineSet® System. The chuck can be removed, allowing the individual use of both the sine plate and magnetic chuck and allowing other products with the same part number suffix to bolt directly to the sine plate.

  • The sine plate portion is made of steel, hardened to Rc 58-62.


  • STANDARD POLE:  1/4" poles and 1/8" separators produce deep flux lines for holding large and thick parts.



  • FINE POLE (marked -FP):  1/8" poles and 1/8" separators produce shallow flux lines for holding small and thin parts.

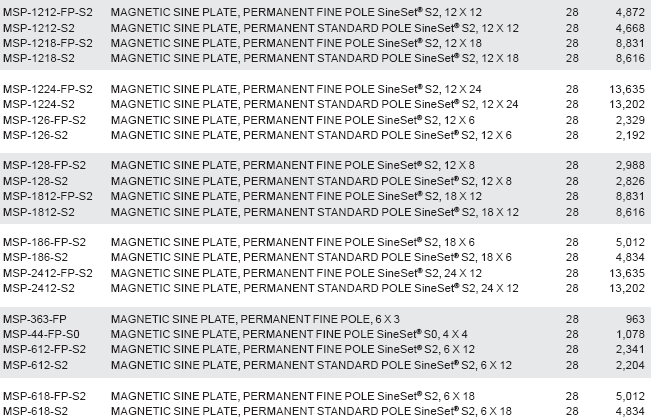

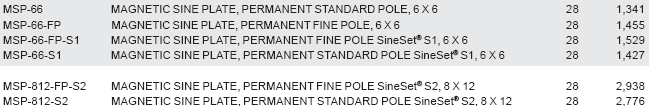

MODEL # SineSet®
SERIES
L W H C SQUARE &
PARALLEL
WT(#)
STANDARD FINE POLE STANDARD FINE POLE
SineSet® COMPATIBLE
-- MSP-44-FP-S0 S0 4" 4" 4-5/8" 3" ±0.0001" 0.0002" -- 21
MSP-66-S1 MSP-66-FP-S1 S1 6"

6"

6" 5" ±0.0001" 39 43
MSP-612-S2 MSP-612-FP-S2 S2 12" 5-1/4" 0.0003" 89 94
MSP-126-S2 MSP-126-FP-S2 12" 6" 10" ±0.0001" 87 92
MSP-618-S2 MSP-618-FP-S2 6" 18" 6" 5" ±0.0001" 0.0004" 155 160
MSP-186-S2 MSP-186-FP-S2 18" 6" 15" ±0.00015" 149 160
MSP-812-S2 MSP-812-FP-S2 8" 12" 5-1/4" 5" ±0.0001" 0.0003" 120 125
MSP-128-S2 MSP-128-FP-S2 12"

12"

12"
8" 10" ±0.0001" 118 123
MSP-1212-S2 MSP-1212-FP-S2 12" 190 196
MSP-1218-S2 MSP-1218-FP-S2 18" 6" 0.0004" 321 330
MSP-1812-S2 MSP-1812-FP-S2 18" 12" 15" ±0.00015" 318 327
MSP-1224-S2 MSP-1224-FP-S2 12" 24" 6-5/8" 10" ±0.0002" 0.0005" 475 485
MSP-2412-S2 MSP-2412-FP-S2 24" 12" 20" ±0.0002" 469 479
NOT SineSet® COMPATIBLE (CHUCK IS NOT REMOVABLE)
-- MSP-363-FP -- 6" 3" 4-1/4" 5" ±0.0001" 0.0002" -- 22
MSP-66 MSP-66-FP 6" 35 39


!!!!!     FOR IMPORTANT HOLDING POWER INFORMATION CLICK HERE     !!!!!
