PERMANENT MAGNETIC COMPOUND SINE PLATES

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

MSPC-66-S1 Permanent Magnetic Compound Sine Plate
MSPC-66-S1

MSPC-126-FP-S2 SineSet Permanent Magnetic Compound Sine Plate
             MSPC-126-FP-S2


  • All chucks use ceramic magnets for superior holding power.


  • Chucks are lubricated and sealed against dirt and liquids.


  • A removable handle and two rails are included with each chuck.


  • Two locking straps and two self-storing, hardened & ground rails are included with each SineSet® compound sine plate.


  • The gage block roll has two 0.200" minute steps for setting small angles with standard gage block sets.


  • Models with the suffix "S0, S1 or S2" are part of the SineSet® System. The chuck can be removed, allowing the individual use of both the compound sine plate and magnetic chuck and allowing other products with the same part number suffix to bolt directly to the compound sine plate.

  • The compound sine plate portion is made of steel, hardened to Rc 58-62.


  • STANDARD POLE:  1/4" poles and 1/8" separators produce deep flux lines for holding large and thick parts.



  • FINE POLE (marked -FP):  1/8" poles and 1/8" separators produce shallow flux lines for holding small and thin parts.


MODEL SineSet®
SERIES
L W H C1 C2 SQUARE &
PARALLEL
WT(#)
STANDARD FINE POLE STD. F.P.
SineSet® COMPATIBLE
-- MSPC-44-FP-S0 S0 4" 4" 5-3/4" 3" ±0.0001" 3" ±0.0001" 0.0002" -- 25
MSPC-66-S1 MSPC-66-FP-S1 S1 6" 6" 5" ±0.0001" 5" ±0.0001" 48 52
MSPC-612-S2 MSPC-612-FP-S2 S2 12" 6-13/16" 10" ±0.0001" 0.0003" 113 118
MSPC-618-S2 MSPC-618-FP-S2 18" 8" 15" ±0.00015" 0.0004" 199 204
MSPC-812-S2 MSPC-812-FP-S2 12" 8" 6-13/16" 10" ±0.0001" 0.0003" 151 156
MSPC-1212-S2 MSPC-1212-FP-S2 12" 10" ±0.0001" 237 243
MSPC-1218-S2 MSPC-1218-FP-S2 18" 8" 10" ±0.00015" 15" ±0.00015" 0.0004" 408 417
NOT SineSet® COMPATIBLE (CHUCK IS NOT REMOVABLE)
MSPC-66 MSPC-66-FP -- 6" 6" 5-3/8" 5" ±0.0001" 5" ±0.0001" 0.0002" 44 48


** Chuck not removable on these models and are not SineSet® Compatible.

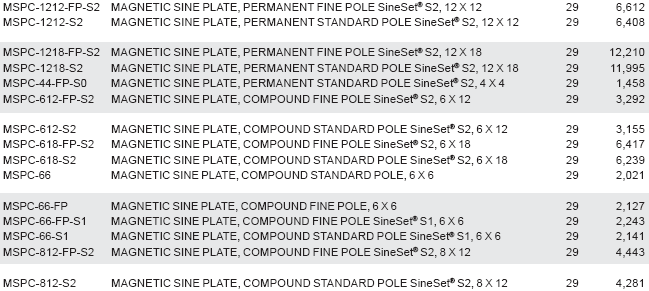

* PRICES SUBJECT TO CHANGE WITHOUT NOTICE
SPECIAL SIZES AVAILABLE UPON REQUEST
