PERMANENT MAGNETIC SINE PLATE CHUCKS
SineSet® MAGNETIC CHUCKS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.


MC-66-S1

MC-612-FP-S2



  • Models with the suffix "S0, S1 or S2" are part of the SineSet® System.  The chucks are designed to bolt directly, with little or no indicating, to a SineSet® sine plate or compound sine plate of the same size and series to form a magnetic sine plate or magnetic compound sine plate.

  • Can be used alone as a parallel chuck. The 4" x 4",  6" x 6" and 9" x 9" models can be used as squaring chucks.

  • Made with ceramic magnets for superior holding power.

  • Chucks are lubricated and sealed against dirt and liquids.

  • Includes removable handle, side and back rails.

  • STANDARD POLE:  1/4" poles and 1/8" separators produce deep flux lines for holding large and thick parts.



  • FINE POLE (marked -FP):  1/8" poles and 1/8" separators produce shallow flux lines for holding small and thin parts.

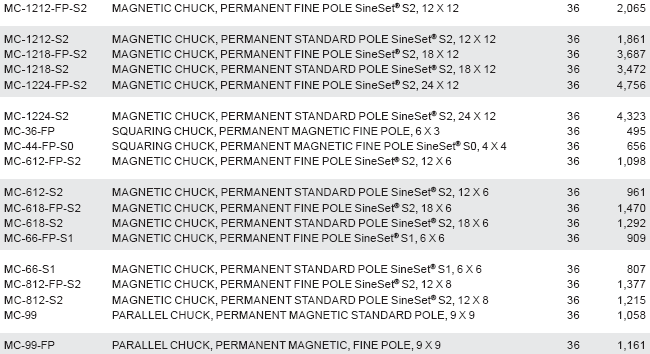

MODEL # SineSet®
SERIES
LENGTH WIDTH HEIGHT SQUARE &
PARALLEL
WT(#)
STANDARD FINE POLE STANDARD FINE POLE
SineSet® COMPATIBLE
-- MC-44-FP-S0 S0 4" 4" 2-5/8" 0.0002" -- 12
MC-66-S1 MC-66-FP-S1 S1 6" 6" 21 25
MC-612-S2 MC-612-FP-S2 S2 12" 0.0003" 42 47
MC-618-S2 MC-618-FP-S2 18" 65 70
MC-812-S2 MC-812-FP-S2 12" 8" 58 63
MC-1212-S2 MC-1212-FP-S2 12" 12" 100 106
MC-1218-S2 MC-1218-FP-S2 18" 0.0004" 151 160
MC-1224-S2 MC-1224-FP-S2 24" 202 212
NOT SineSet® COMPATIBLE (SQUARING CHUCK ONLY)
MC-99 MC-99-FP -- 9" 9" 2-5/8" 0.0004" 49 53


!!!!!     FOR IMPORTANT HOLDING POWER INFORMATION CLICK HERE     !!!!!










Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
E-mail: sales@auto-met.com

Back


SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
