MAGNA-SINE MAGNETIC SINE PLATES
FORMERLY BY EX-CELL-0 / ROBBINS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

B-3-MS MAGNA-SINE Magnetic Sine Plate
B-3-MS
B-5-MS MAGNA-SINE Magnetic Sine Plate
B-5-MS
B-15-MS MAGNA-SINE Magnetic Sine Plate
B-15-MS

B-10-MS MAGNA-SINE Magnetic Sine Plate
B-10-MS

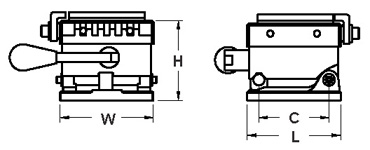

MAGNA-SINE Magnetic Sine Plate Dimensional Drawing

  • MAGNA-SINE magnetic sine plates are equipped with extremely powerful ceramic magnet chucks.  Having stationary magnets in the top plate and a movable magnet core, these chucks provide an average holding power of up to 100 pounds per square inch. This is nearly twice the holding power of a standard chuck!


  • The chucks provide maximum holding of both small & large parts due to a combination fine / standard pole spacing.


  • The swivel block provides full face contact with gage blocks keeping them securely in place.


  • The gage block & hinge rolls are made from hardened steel, ground and lapped for straightness and roundness.

  • An exclusive locking device inside the hinge roll provides a positive lock with an expanding action. Both screws lock toward the front of the unit, pulling the top plate down on the set-up gage blocks without distortion.


  • The angular accuracy is guaranteed to be within 5 seconds of arc up to 15°, 10 seconds up to 30° and 15 seconds up to 45°.


  • Side and back rails are included.


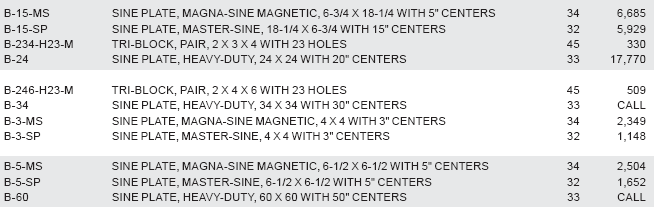

MODEL # L W H C SQUARE &
PARALLEL
WT(#)
B-3-MS 4" 4" 3-1/2" 3" ±0.0001" 0.0002" 10
B-5-MS 6-1/2" 6-1/2" 3-7/8" 5" ±0.0001" 31
B-10-MS 6" 12" 4-1/2" 0.0003" 67
B-15-MS 18-1/4" 5" 5" ±0.00015" 0.0004" 121


!!!!!     FOR IMPORTANT HOLDING POWER INFORMATION CLICK HERE     !!!!!
