MATCHED PAIRS
OF
4-WAY STEEL PARALLELS

P-06050100-M Matched Pair of 4-Way Steel Parallels
P-06050100-M



  • Made of alloy steel, hardened to Rc 58-62 and ground in matched pairs on four sides for use where extra precision is required.


  • Pairs are matched in size on the width and height to a tolerance of 0.0002" on 6", 8" & 12" lengths and 0.0003" for longer lengths.


  • Total parallelism, straightness over the full length is 0.0001" on 6" & 8" lengths, 0.0002" on 12" lengths & 0.0003" on longer lengths.


  • Adjacent ground sides are square with each other within 0.0004", except the 6" x 1/4" x 3/4", 6" x 1/4" x 3/8" and 6" x 1/4" x 1/2" sizes, which are square within 0.0005".


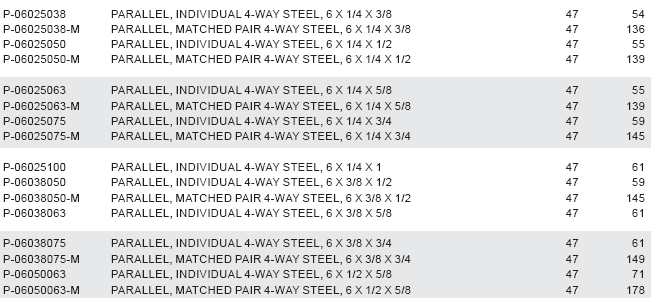

MODEL # LENGTH WIDTH HEIGHT WT(#)
P-06025038-M 6" 1/4" 3/8" 1
P-06025050-M 1/2"
P-06025063-M 5/8"
P-06025075-M 3/4"
P-06038050-M 3/8" 1/2"
P-06038075-M 3/4" 2
P-06050063-M 1/2" 5/8"

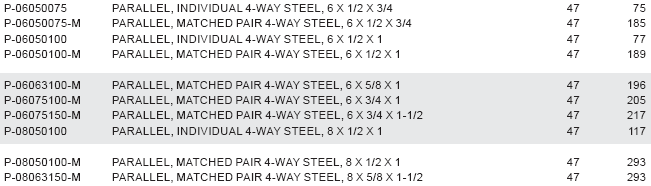

P-06050075-M 3/4"
P-06050100-M 1"
P-06063100-M 5/8" 3
P-06075100-M 3/4"
P-06075150-M 1-1/2" 5
P-08050100-M 8" 1/2" 1" 3
P-08063150-M 5/8" 1-1/2" 5

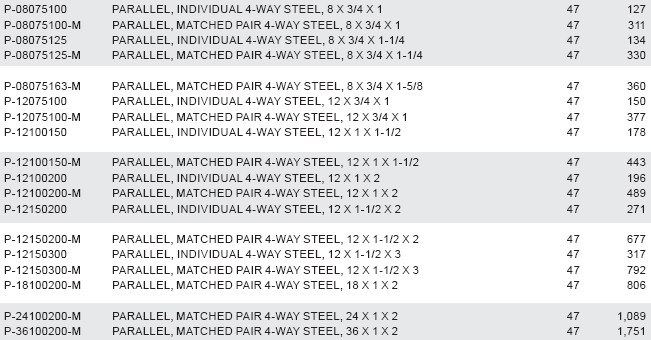

P-08075100-M 3/4" 1" 4
P-08075125-M 1-1/4" 5
P-08075163-M 1-5/8" 6
P-12075100-M 12" 1"
P-12100150-M 1" 1-1/2" 11
P-12100200-M 2" 14
P-12150200-M 1-1/2" 21
P-12150300-M 3" 32
P-18100200-M 18" 1" 2" 22
P-24100200-M 24" 29
P-36100200-M 36" 53
