MAGNUM-FORCE
SURFACE GRINDER CHUCKS


PERMANENT MAGNETIC CHUCKS WITH DUAL MAGNETS


PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

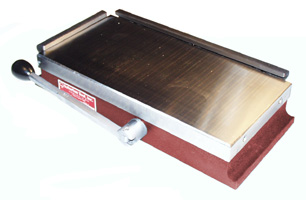

DMB-612

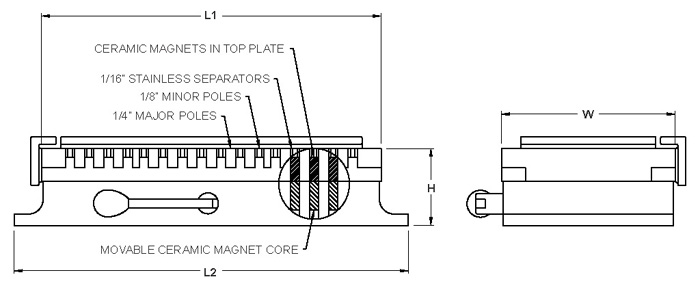

  • Made with ceramic magnets for superior holding power.

  • Stationary magnets in the top plate and a movable magnet core provide an average holding power of 100 pounds per square inch.  This is twice the power of a standard chuck.

  • Chucks are lubricated and sealed against dirt and liquids.

  • A rigid work surface is provided by laminated and brazed top plate.

  • These chucks provide maximum holding power of both small & large parts, due to combination fine / standard pole spacing.

  • Low height for more work clearance.

  • Two hold-down clamps, one side rail and one end rail are included.




FULL 24 MONTH WARRANTY

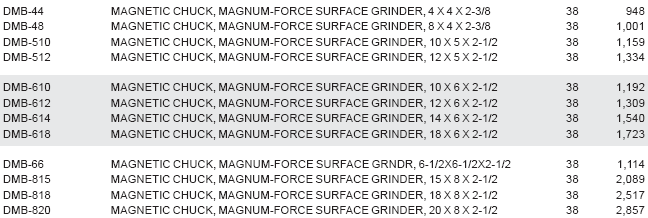

MODEL LENGTH WIDTH HEIGHT WT(#)
DMB-44 4-3/4" 4" 2-3/8" 10
DMB-48 9-1/8" 20
DMB-510 11-1/8" 5" 2-3/4" 28
DMB-512 13-1/8" 35
DMB-66 7-1/8" 6-1/2" 25
DMB-610 11-1/8" 6" 35
DMB-612 13-1/8" 44
DMB-614 15-1/2" 52
DMB-618 19-3/4" 66
DMB-815 15-3/4" 8" 73
DMB-818 18-3/4" 87
DMB-820 20-3/4" 102
DMB-824 24-3/4" 116
DMB-1015 15-3/4" 10" 90
DMB-1018 18-3/4" 101
DMB-1020 20-3/4" 125
DMB-1024 24-3/4" 3-1/2" 134
DMB-1218 18-3/4" 12" 158

DMB-1224

24-3/4" 192


!!!!!     FOR IMPORTANT HOLDING POWER INFORMATION CLICK HERE     !!!!!







Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
E-mail: sales@auto-met.com

Back


SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
