PERMANENT MAGNETIC SURFACE GRINDER CHUCKS

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.


MCB-618-FP



  • Ceramic magnets provide superior holding power that never fades.

  • Sealed against dirt and liquids and can be used in EDM machines.

  • Front-mounted handle is removable to eliminate interference.

  • Handle, back rail, side rail and two clamps included.
  • STANDARD POLE:  1/4" poles and 1/8" separators produce deep flux lines for holding large and thick parts.



  • FINE POLE (marked -FP):  1/8" poles and 1/8" separators produce shallow flux lines for holding small and thin parts.

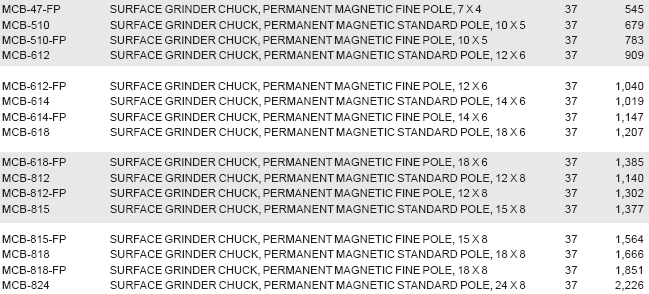

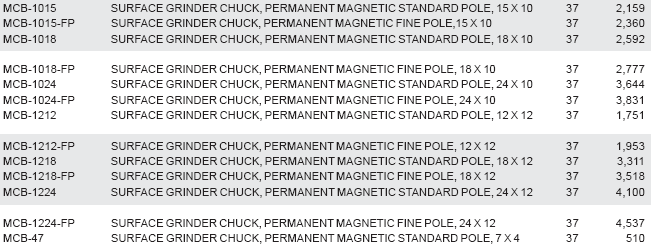

MODEL # LENGTH WIDTH HEIGHT WT. (#)
STANDARD FINE POLE STANDARD FINE POLE
MCB-47 MCB-47-FP 7-1/2" 4" 2-5/8" 19 19
MCB-510 MCB-510-FP 10-1/2" 5" 35 35
MCB-612 MCB-612-FP 12-1/2" 6" 47 47
MCB-614 MCB-614-FP 14-1/2" 55 55
MCB-618 MCB-618-FP 18-1/2" 70 70
MCB-812 MCB-812-FP 12-1/2" 8" 63 63
MCB-815 MCB-815-FP 15-1/2" 79 79
MCB-818 MCB-818-FP 18-1/2" 95 95
MCB-824 MCB-824-FP 24-1/2" 126 126
MCB-1015 MCB-1015-FP 15-1/2" 10" 111 111
MCB-1018 MCB-1018-FP 18-1/2" 134 134
MCB-1024 MCB-1024-FP 24-1/2" 178 178
MCB-1212 MCB-1212-FP 12-1/2" 12" 107 107
MCB-1218 MCB-1218-FP 18-1/2" 161 161
MCB-1224 MCB-1224-FP 24-1/2" 213 213


!!!!!     FOR IMPORTANT HOLDING POWER INFORMATION CLICK HERE     !!!!!
