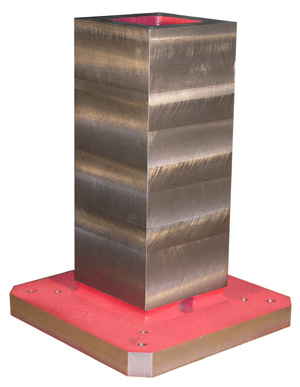

Tombstone fixtures provide a solid base for mounting vises,
fixtures, or sub-plates.
from one-piece, class 40 cast iron that has been stress-relieved.
sides milled flat, square & square within 0.001" in 12".
mounting standard, JIS mounting optional.
square columns have drilled and tapped lifting holes in the top
surface and coolant drain holes at the base of the column.
- Available standard as plain milled
or custom made with your own hole pattern.
A large number of
standard size castings in stock.
