T-TYPE COLUMN PALLET FIXTURES

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.


TST-1 T-Type Column Workholding Fixture

TST-1

TST T-Type Pallet Fixture Drawing

  • Tombstone fixtures provide an accurate vertical base for mounting vises, fixtures, or sub-plates.


  • Made from one piece, class 40 cast iron that has been stress relieved.


  • Base and sides milled flat, parallel & square to 0.001" in 12".


  • DIN mounting standard, JIS mounting optional.


  • Available standard as plain milled or custom made with your own hole pattern.


  • A large number of standard size castings in stock.

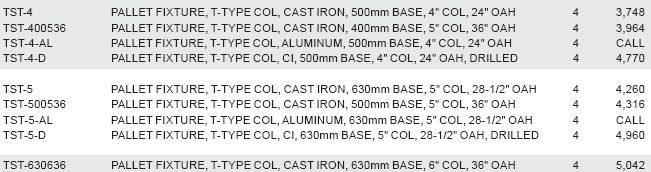

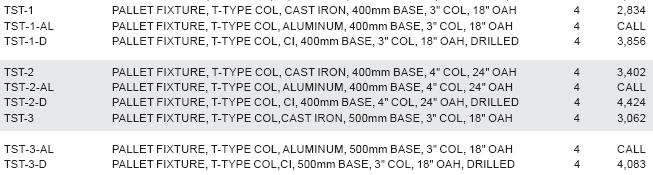

MODEL A B C D E WT(#)
TST-1 400mm 1-3/4" 18"  3" 6.30" 310
TST-2 24"  4" 480
TST-400536 36"  5" 978
TST-3 500mm 2" 18"  3" 7.87" 450
TST-4 24"  4" 660
TST-500536 36"  5" 1279
TST-5 630mm 2-1/4" 28-1/2" 9.84" 1100
TST-630636 36"  6" 1919





Automation and Metrology 130 Liberty Street Painesville, Ohio 44077
Phone:  (440) 354 6436  Fax:  (440) 639 9983
E-mail: sales@auto-met.com

Back


SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
