T-TYPE WINDOW PALLET FIXTURES

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

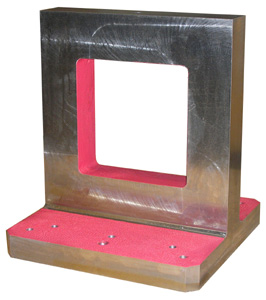

TSW-1 T-Type Window Workholding Fixture

TSW-1

TSW T-Type Window Pallet Fixture Drawing



  • Tombstone fixtures provide an accurate base for mounting tooling and fixture plates.


  • Allows for front and back machining of parts.


  • Made from one-piece, class 40 cast iron that has been stress-relieved.


  • DIN mounting standard, JIS mounting optional.


  • Base and sides milled flat, parallel, and square to 0.001" in 12".


  • A large number of standard size castings in stock.


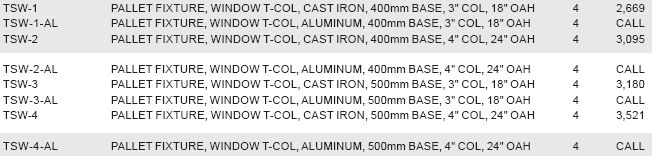

MODEL A B C D E F G WT(#)
TSW-1 400mm 1-3/4" 18" 3" 6.30" 9-1/4" 9-1/4" 245
TSW-2 24" 4" 15-1/4" 330
TSW-3 500mm 2" 18" 3" 7.87" 9-1/4" 12-3/4" 355
TSW-4 24" 4" 15-1/4" 455
