MINI-MASTER™ INDEX FIXTURE

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.



  MM-25R Index Fixture - Right-Front View
MM-25R - Right-Front View

  MM-25R Index Fixture - Right-Rear View
MM-25R - Right-Rear View

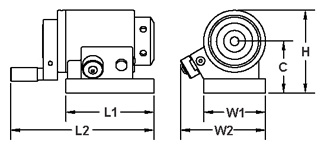

  MM-25R Index Fixture Drawing


  • 72 position index plate provides a hard stop every 5 +/-15 arc seconds.

  • Light weight for easy handling.

  • Uses standard ER-25 spring collets.

  • Maximum spindle runout is 0.0002" T.I.R.

  • Low height is ideal for small machine set-ups.

  • Hardened steel base.

  • Fitted wooden case included.



MODEL # COLLET
CAPACITY
THROUGH
HOLE
C L1 L2 W1 W2 H WT(#)
MM-25R All ER-25 5/8" 1-7/8" 3-3/16" 5-3/16" 2-1/4" 3-1/16" 3" 4
