Master-Grind™ INDEX FIXTURE

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

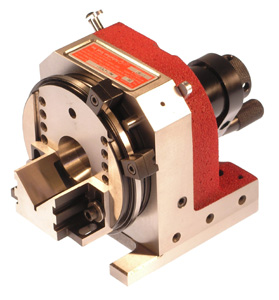

MG-5CV-S1 Index Fixture - Left-Front View
MG-5CV-S1 Left-Front View


  MG-5CV-S1 Index Fixture - Left-Rear View
MG-5CV-S1 Left-Rear View
  MG-5CV-S1 Index Fixture Drawing



  • V-Block and 5C collet in one fixture.

  • 72 position index plate provides a hard stop every 5 15 arc seconds.

  • Built in sine bar for setting angles between hard index locations.

  • Horizontal or vertical v-block mounting

  • Spindle runs in two heavy duty 4" diameter tapered roller bearings.

  • Maximum spindle runout of 0.00005".

  • Fitted wooden case included.

FULL 24 MONTH WARRANTY

MODEL # SineSet
SERIES
COLLET
CAPACITY
V-BLOCK
CAPACITY
THROUGH
HOLE
C L1 L2 W H SQUARE &
PARALLEL
WT(#)
MG-5CV-S1 S1 ALL 5C 1-5/8" 1-1/4" 3" 8-15/16" 5-3/16" 5" 5-1/2" 0.0002" 22
Covered by design patent D327077.

ACCESSORIES FOR THE Master-Grind™ INDEX FIXTURE

  MOTOR DRIVE KIT
MG5-MD Motor Drive Kit
MG5-MD


  MG5-MD Motor Drive Kit on MG-5CV-S1 Index Fixture
MG5-MD on MG-5CV-S1



  • 1/15 HP, reversible, variable speed, 60 to 300 RPM.

  • Can be mounted on either side of the index fixture.

  • Includes mounting bracket, motor pulley, drive belt & screws.



  BASE & TAILSTOCK
MG5-BTS Base & Tailstock
MG5-BTS


  MG-5CV-S1 Index Fixture on MG5-BTS Base & Tailstock
MG-5CV-S1  on MG5-BTS

  • Tailstock has 1/2" diameter x 60, spring-loaded center with locking screw.

  • Baseplate and edge guide are hardened and ground.

  • 1/2" 5C collet and 60 headstock center included.

  Note:  Factory fitting of the MG5-CV-S1 to the MG5-BTS is required.  This is included at no charge, even when the Baseplate & Tailstock is purchased separately from the Index Fixture.


MODEL # DESCRIPTION LENGTH WIDTH HEIGHT CAPACITY WEIGHT(#)
DIAMETER LENGTH
MG5-BTS BASEPLATE & TAILSTOCK 16-7/16" 5-1/2" 4-23/32" 5-3/4" 7-1/4" 22
MG5-MD MOTOR DRIVE KIT 8-5/32" 3-15/16" 5-5/32" -- -- 5





SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
