Suburban Tool - SLOTTED ANGLE PLATES - WEBBED & OPEN END

SLOTTED ANGLE PLATES - WEBBED & OPEN END

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

Made of high quality, stress relieved cast iron.
Multiple clamping slots for easy mounting of workpieces.
Webbed type - 2 working faces and all ends machined square and parallel within 0.002 per 6".
Open end type - 4 working faces and all ends machined square and parallel within 0.002" per 6".
Also available ground with working faces square & parallel within 0.0005" per 6".

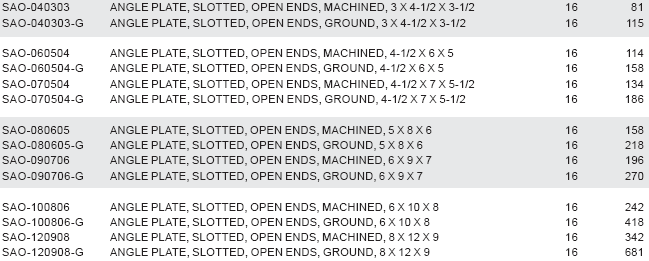

**OPEN END STYLE**
MODEL #		A	B	C	D	SLOTS	WT(#)
MACHINED	GROUND	A	B	C	D	SLOTS	WT(#)
SAO-040303	SAO-040303-G	4-1/2"	3-1/2"	3"	5/8"	(4) 9/16"	4
SAO-060504	SAO-060504-G	6"	5"	4-1/2"	13/16"	(7) 9/16"	12
SAO-070504	SAO-070504-G	7"	5-1/2"	4-1/2"	13/16"	(8) 9/16"	14
SAO-080605	SAO-080605-G	8"	6"	5"	15/16"	(8) 9/16"	20
SAO-090706	SAO-090706-G	9"	7"	6"	15/16"	(13) 11/16"	24
SAO-100806	SAO-100806-G	10"	8"	6"	1-1/16"		33
SAO-120908	SAO-120908-G	12"	9"	8"	1-3/16"		50

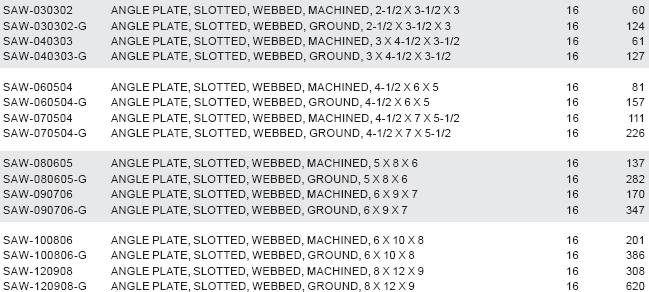

**WEBBED STYLE**

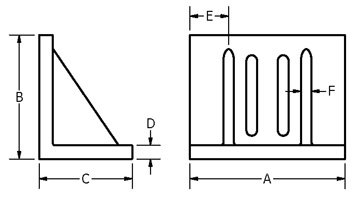

MODEL #		A	B	C	D	E	F	# OF WEBS	SLOTS	WT(#)
MACHINED	GROUND	A	B	C	D	E	F	# OF WEBS	SLOTS	WT(#)
SAW-030302	SAW-030302-G	3-1/2"	3"	2-1/2"	7/16"	1-3/4"	7/16"	1	(4) 7/16"	4
SAW-040303	SAW-040303-G	4-1/2"	3-1/2"	3"	9/16"	2-1/4"	9/16"		(4) 9/16"	5
SAW-060504	SAW-060504-G	6"	5"	4-1/2"	11/16"	3"	11/16"		(4) 11/16"	13
SAW-070504	SAW-070504-G	7"	5-1/2"	4-1/2"	11/16"	3-1/2"	11/16"		(4) 11/16"	14
SAW-080605	SAW-080605-G	8"	6"	5"	3/4"	2"	5/8"	2	(4) 9/16"	22
SAW-090706	SAW-090706-G	9"	7"	6"	3/4"	2-1/4"	5/8"		(4) 11/16"	28
SAW-100806	SAW-100806-G	10"	8"	6"	7/8"	2-1/2"	11/16"		(4) 11/16"	35
SAW-120908	SAW-120908-G	12"	9"	8"	1"	3"	3/4"		(11) 11/16"	60

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
SPECIAL SIZES AVAILABLE UPON REQUEST
