MV-14 MASTER-VIEW
14" OPTICAL COMPARATOR

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

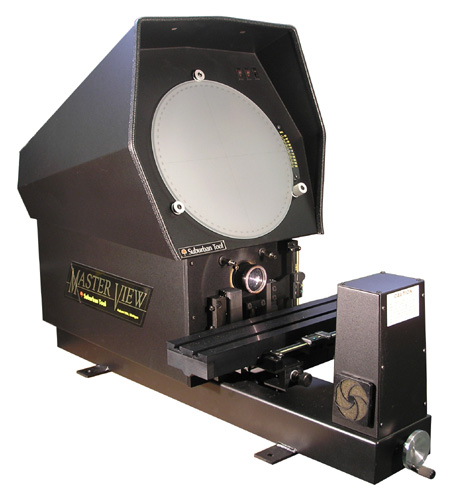

MV-14 14" Optical Comparator
MV-14

  • Surface illumination through duplex fiber optics.


  • Digital LCD scales on X and Y axes provide readings to 0.0005".


  • SPC Output from scales is compatible with most SPC Systems.


  • 3-Position rotary switch selects profile, surface, or  combination surface and profile illumination modes.


  • High capacity 4" x 8" travel stage with 4-1/2" x 19" work surface.


  • Ball way construction handles loads to 100 lbs.


  • Single long life tungsten-halogen light source.


  • Heavy-duty monorail type, welded steel frame.


  • Rotary frosted glass screen with 90° crosslines and 360° protractor markings.


  • Vernier readings to 5 minutes of arc.


  • 10 power lens system.


  • Clip-on overlay chart clips.


  • Weighs 245 lbs.


  • Measures 48-1/2" long x 22-1/4" wide x 34" high.
