MV-140-SE MASTER-VIEW
14" OPTICAL COMPARATOR
with Erect Image

PROUDLY MADE IN OUR FACILITY IN THE U.S.A.

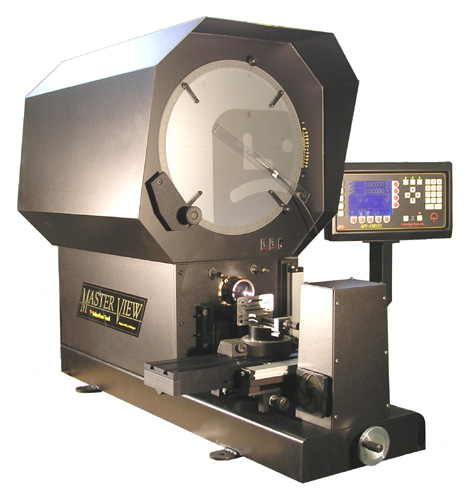

MV-140-SE 14" Optical Comparator with Erect Image
TST-1

  • Suburban's own MV-14-DRO2 3-axis digital readout with:


    • Part view to show the relationship between all part features.

    • 5.7" LCD screen.

    • Direct measurement of circles, arcs, angles, points, lines, distance, perpendicularity, parallelism and slots.

    • Part programming.

    • Auto-enter, looping and auto-finish.

    • 360° digital protractor.

    • Multiple languages.

    • Output to PC or printer.

    • Metric / inch conversion.

    • Skew capability.

    • Display reads to 0.0001".


  • 1 micron glass scales.


  • Two long-life tungsten-halogen light sources.


    • Extra bright surface illumination through duplex fiber optics.

    • Individual switches select profile, surface or combination surface and profile illumination modes.


  • High capacity 4" x 8" travel stage with 4-1/2" x 19" work surface.


  • Ball way construction handles loads to 100lbs.


  • Heavy-duty monorail type, welded steel frame.


  • Rotary frosted glass screen with 90° crosslines and 360° protractor markings.


  • Vernier readings to 5 arc minutes.


  • 10 power lens system (20 & 50 X optional).


  • Edge detection is standard.


  • Screen-mounted overlay chart clips.


  • Weighs 235 lbs.


  • Measures 46-1/2" long x 22-1/2" wide x 35-1/2" high.


      Additional MV-140 Models:


  MV-140-QRE Same as above with Metronics® Quadra-Chek digital readout.
  MV-140-S Same as MV-140-SE without edge detection.
