3-AXIS REFERENCE SQUARE
NO. 9314 SERIES

The Taft-Peirce 3-Axis Reference Square is the perfect tool for checking all three axes of machining centers, and coordinate measuring machines. It may be also used in applications where there is a need to check horizontal and/or vertical alignment.

A desired feature of this tool is its design simplicity. There are no electrical or mechanical parts to malfunction, adjust, or maintain. The 3-Axis Reference Square greatly simplifies the checking and adjustment of all three axes quickly, easily and accurately without major disruption or loss of productivity. The precision 3-Axis  Square is widely used by industry in the alignment of machine tools and special machinery.

SPECIFICATIONS

Cast of a special grade of cast iron, normalized, finish ground or hand scraped to an accuracy level in which tolerance of all working surfaces are held square to one another within 0.0003" overall.

Style No. Overall Dimensions Squareness Full Length Approx. Weight Price
Length Width Thickness at Edges Ground Scraped
9314 40" 24" 2" 0.0003" 150 lbs. discontinued $6,470

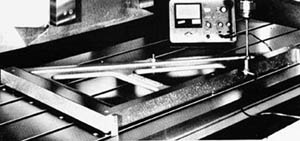

SIX QUICK STEPS CHECK X, Y AND Z ALIGNMENT

  1. Square measuring iron to table X axis using T-slot
  2. Track X axis along reference iron with spindle/probe to determine squareness
  3. Adjust X travel to fall within established tolerance
  4. Track Y axis to determine squareness of X, Y positions
  5. Position measuring iron in vertical position on table
  6. Track vertical surface with a spindle/probe to determine squareness
    of Z to X and Y (table)
