Vermont Pin Gages     Pin Gauges offered By AMI

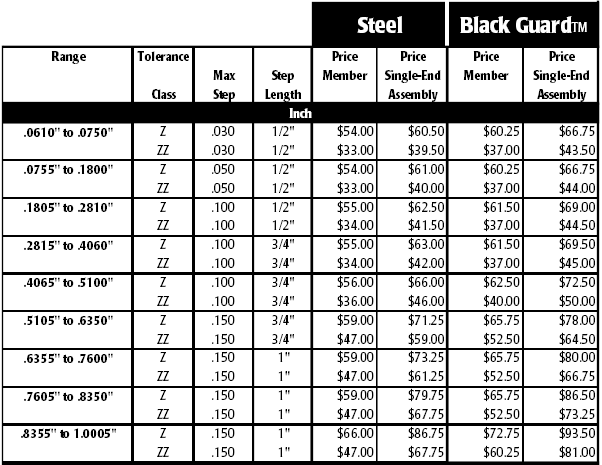

Go NoGo Standard Step Pins / Step Plug Gages


        REQUEST A QUOTE

Work #:


Model #:

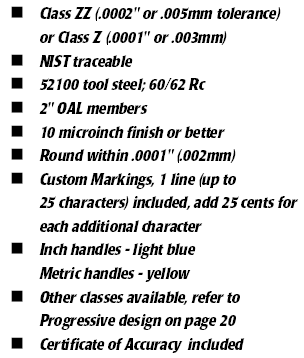

Step Pin Class ZZ (.0002 inch or .005 mm tolerance)  *Go (Plus) or NoGo (Minus)  * NIST traceable  * .0005 inch or .02 mm sizes  * .001 inch or .02 mm set increments  * 52100 tool steel; 60/62 Rc  * 2 inches long   *10 microinch finish or better   *within .0001 inch round
