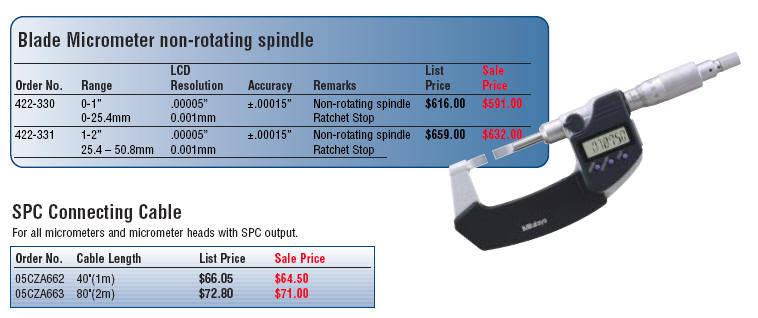

Blade Micrometers - Series 422, 122 - Non-Rotating Spindle


FEATURES:


Non-rotating spindle

The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hardto-reach portions


The 422 series provides digital readout to.00005""/0.001mm and can be linked to the SPC system


MDC Digimatic functions same as the Digimatic Outside Micrometers series 293 at the first pages of this section
All Digimatic models provide SPC output. See order table for cable


Quickmike Digimatic types provide Absolute encoder sensor that tracks spindle position eliminating the need for repeated zero settings


Quickmike Digimatic types also have a measuring range .2""/5mm wider than the conventional MDC type
Accuracy

Parallelism: .00012"" for models up to 2"", .00012"" + .00004"" x ( ) for over 2"", 3µm models for up to 50mm, (3 + L/100)µm for models over 50mm. (*truncated after decimal point). L = maximum measuring length L* 4""
