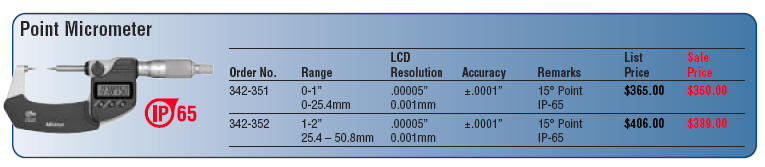

Point Micrometers - Series 342, 142, 112



Pointed spindle and anvil for measuring the web thickness of drills, small grooves, and other hard-to-reach dimensions
Radius of curvature of measuring points:0.012"(0.3mm)
The 342 series provides digital readout to 0.00005"/0.001mm and can be linked to the SPC system
Provided with ratchet stop for constant force
Digimatic functions same as the digimatic outside micrometers series 293
Replacement battery: 541980 (1pc), 541980-10 (10pcs/SET)
The measuring points have approximately 0.012" radius, and are available with or without carbide tips
