SUBURBAN TOOL
GIANT SLOTTED / T-SLOTTED WEBBED ANGLE PLATES







PROUDLY MADE IN OUR FACILITY IN THE U.S.A.




  • Made of high quality fine grained, stress relieved cast iron.


  • Available in machined finish, square and parallel within 0.002" per 6" or ground finish (up to 20"), square and parallel within 0.0005" per 6".

  • Extra thickness and heavy ribbed construction.


  • Multiple 13/16" wide slots for many bolting and clamping possibilities.

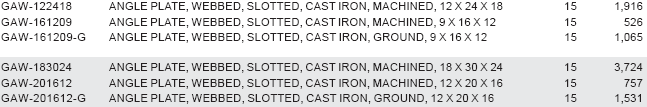

MODEL # A B C D E F WT(#)
MILLED GROUND
GAW-161209 GAW-161209-G 16" 12" 9" 1-1/8" 8" 7/8" 112
GAW-201612 GAW-201612-G 20" 16" 12" 10" 200
GAW-122418 -- 12" 24" 18" 1-1/2" 5" 1-3/16" 300
GAW-183024 18" 30" 24" 1-3/4" 9" 1-3/8" 700


                     REQUEST A QUOTE

Name:
Company:

Address:

City:

State:

Zip:

Work Phone:

E-mail:


  Comments:


Product:
Model #:






SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. SPECIAL SIZES AVAILABLE UPON REQUEST.
