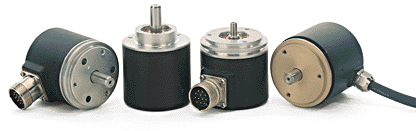

ROC/ROQ rotary encoders from HEIDENHAIN are characterized by their rugged design and compact dimensions. ROC/ROQ encoders are coupled to the drive or the spindle via a separate rotor coupling. Axial motion and misalignment (radial and angular offset) between the encoder shaft and the drive shaft are compensated by the coupling.

Selection aid: Product families ROC (singleturn) and ROQ (multiturn)



Shaft	Series	Protection
Stub shaft	Series ROC 400 with parallel data output Series ROC 400 with synchronous-serial data output Series ROQ 400	IP 64 IP 64 IP 64
