A complete system consists of one or more Linear Encoders, commonly referred to as scales,
and a Digital Readout.
The Linear Encoder monitors the machine travel and the Digital Readout (DRO) displays the distance moved or machine table position to the operator.
The axis display is large and clear and the keyboard is designed to be easy to use.
Many functions can be taken off the keyboard to support the work at the machine.
Depending on application you can choose between different versions of the readout.

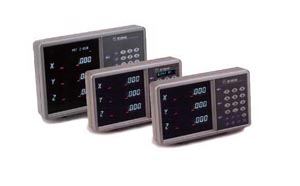

Zählergruppe, Digital Read outs



Features

Z 710
Z 720
Z 730

  Z 715
  Z 725
  Z 735
  Z 735E*
  Z 735S**

Z 820
Z 830
 Z  830E*
 Z 830S**
Z 840

number of axis

1, 2, 3

1, 2, 3

2, 3, 4

programming of system parameters

x

x

x

selectable axis name

x

x

x

switchable for use on a lathe or milling machine

x

x

x

Software setup for fixing resolution, measuring step
and counting direction

x

x

x

function to delete a parameter

x

x

x

Reset- and Preset input
(Reset of the displays by pressing one button)

x

x

x

addition/subtraction of the display value with the keybord

x

x

x

bolt hole pattern, graduated circle function,
rectangular drilling pattern

x

x

x

Reference mark evaluation (quasi-absolut)

x

x

x

Hardware test and display test

x

x

x

99 tool corrections (lathe mode)

x

x

99 datum points (milling mode)

x

x

store values for axis display

x

x

x

absolute/incremental

x

x

x

mm/inch conversion

x

x

x

centering (divide by 2)

x

x

x

radius/diameter

x

x

x

each axis is adjustable for Rotary or Linear Encoder input.
Rotary Encoder input will be displaying
lines/revolution and decimal degrees


x

x

linear error correction programmable (4 point correction)

x

x

x

notlinear axes-error correction

x
(100 corr.
points)

x
(4 corr.
  points)

shrinkage ±40%

x

x

x

summing for two axis (Z + Z1)

x

x

x

display for approximation to zero point

x

x

x

feed display

x

x

axes movements with displayed remaining travel way

x


inbuilt stop-watch

x

x

taper function

x

x

display of spindle speed

x

x

skew compensation
Bi-directional RS 232 interface to connect a printer or a personal computer
(control system with extern commands)
Baudrate and data format are adjustable via software


o

o

7 free programmable switch off and pre-switch off points with relay output,
programming to a 0,1 sec. short signal or a direction signal


o

8 free programmable switch off and pre-switch off points with relay output,
programming to a 0,1 sec. short signal or a direction signal


o


edge probe input

o

x

output for constant surface speed

o

o

external Reset for each axis

o

external input

o

program store for 500 sets

o

special display for spark erosion

o

o

compensation for grinding wheels

o

o

* = DRO for spark ersosion machines x = standard
** = DRO for surface grinders o = optional
Technische Daten:
Power supply: 115/230 V~ (switch adjustable)
Power consumption: 20 VA (Z 7xx series with 3 axes)
30 VA (Z 8xx series with 4 axes)
Display: 8 digits plus sign and one digit for axis display
Monitor display: 10 digit alphanumeric display
Color of display: green
Height of display: 14,5 mm
Overlay: Polyester, scratchless and resistent against cooling and lubercating fluids.
Audible feedback.
Resolution: selectable (depending on the Linear Encoder)
Input: square wave signals +5 V
Permissible input frequency: 1 MHz
Environmental sealing (acc.to DIN 40050) IP 53

(techn. adjustment in reserve)

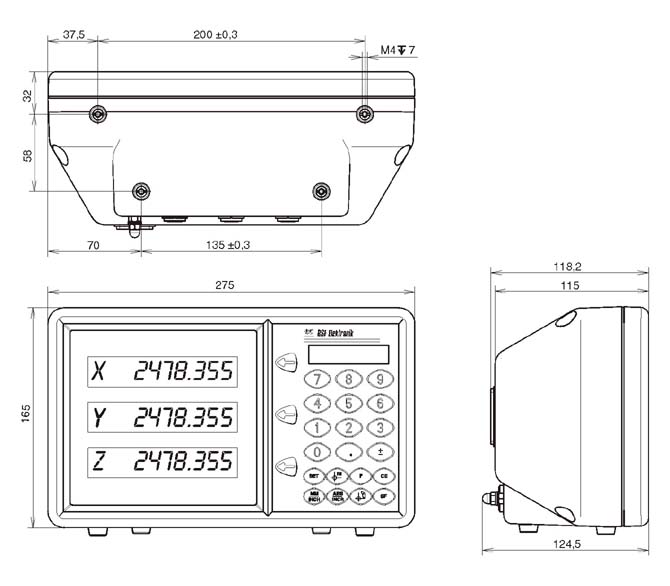

Dimensions Z 7xx series
Z 7xx Abmessungen

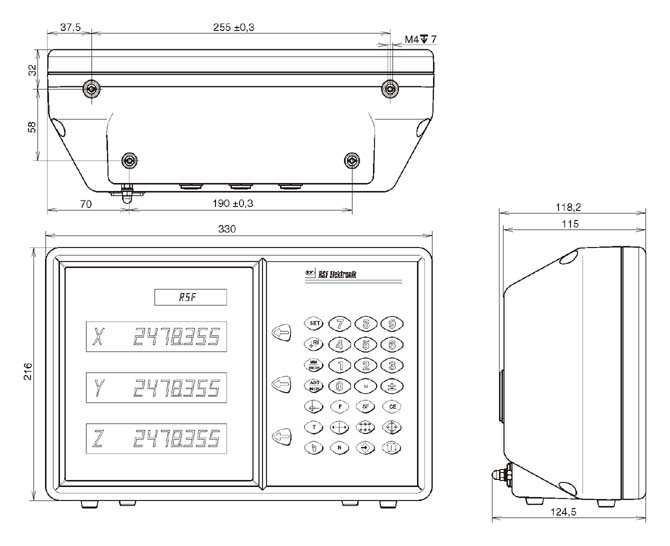

Dimensions Z 8xx series
Z 8x0 Abmessungen
