M-30

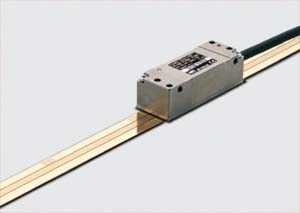

Open Linear Encoder
with single-field scanning principle
  • easy mounting as a result of large mounting tolerances
  • high insensitivity to contamination
  • high traversing speed
  • "true" reference mark (accurate and repeatable from both traversing directions)
  • two independent switch signals (optical)
    for individual functions
  • Integrated subdividing electronics
    up to times 100 interpolation
  • max. measuring length 3240 mm


MS 30

System
resolution
m

Accuracy (*1)
m/measuring
length

Grating
pitch
m

 Output
analog (Upp)

Output
analog (Ipp)

 Output
digital
(Subdividing factor)

see *

5, 15

20

MS 30.03

--

--

5

5, 15

20

--

--

MS 30.23 (1)

1

5, 15

20

--

--

MS 30.63 (5)

0,5

5, 15

20

--

--

MS 30.73 (10)

0,25

5, 15

20

--

--

MS 30.43 (20)

0,2

5, 15

20

--

--

MS 30.53 (25)

0,1

5, 15

20

--

--

MS 30.83 (50)

0,05

5, 15

20

--

--

MS 30.93 (100)


* = depending on
external Subdividing
(*1) = depending on tape carrier

Max. measuring length: steel tape scale to 3240 mm
Standard measruing length: from 120 mm to 3240 mm
Position of the
Reference mark:
(RI)
Standard: in the middle of the measuring length
On request: one end or other custom location
Output analog: typical 1 Vpp
Output digital: square wave signals (single ended)
with integrated Subdividing Electronics

square wave signals (differential) via Line Driver RS 422 standard
with integrated Subdividing Electronics
with analog signal switch-over for setup


Tape carrier:
Different types
are available

(Downloads at the end
of this side)
MS 30.xx MO = steel tape scale without carrier
MS 30.xx MK = steel tape scale with adhesive tape


MS 30 MO MK  overall dimensions

MS 30.xx MP = steel tape scale in aluminium carrier with clamping element,
                        carrier glued

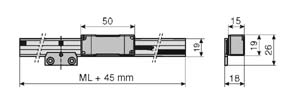

MS 30 MP  overall dimensions


MS 30.xx MT = steel tape scale in aluminium carrier with clamping element,
                        and mounting bolts holes

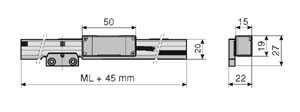

MS 30 MT  overall dimensions

MS 30.xx MA = steel tape scale mounted onto aluminium carrier,
                        and mounting bolts holes
MS 30.xx MS = steel tape scale mounted onto steel carrier,
                        and mounting bolts holes

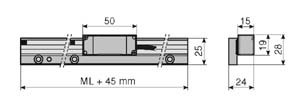

MS 30 MA MS  overall dimensions


(techn. adjustment in reserve)

Dimensions and Mounting possibilities:
(for Adobe Acrobat 5.0 or higher)

Document Type Size

Mounting Instructions
Mounting Instructions MS 30 MA MS  pdf 708.77 kb
Mounting Instructions MS 30 MO MK  pdf 698.20 kb
Mounting Instructions MS 30 MP  pdf 741.62 kb
Mounting Instructions MS 30 MT  pdf 748.58 kb

Dimensions, Mounting possibilities
MS 30 MA, MS 30 MS  pdf 423.28 kb
MS 30 MO, MS 30 MK  pdf 418.42 kb
MS 30 MP  pdf 427.68 kb
MS 30 MT  pdf 427.79 kb

Technical data product-related
MS 30  pdf 589.81 kb
