Quadra-Chek software supports industries that require precise measurement and inspection of 2D and 3D parts in single-sensor and multi-sensor environments. The products feature an intuitive user interface and simple, meaningful visual displays. Their design reflects a deep understanding of user needs and a uniform work process model that supports operators at every stage in the measurement process. Metronics software leads the industry in programming and automation innovations that improve operator productivity, reduce errors and save time and money.

Modern metrology is a complex sequence of measuring, recording, analyzing and reporting dimensional data. The conceptual model underlying Metronics software design organizes the workflow to support operator needs at every stage of the measurement process. Learn more about innovations in Quadra-Chek Metrology Software...

Quadra-Chek 5000 Series Metrology Software These Microsoft Windows-based applications support 3- and 4-axis measurement of 3D parts and are designed for use with single- and multi-probe coordinate measuring machines and video inspection systems with touch probe and/or non-contact sensor configurations.

Quadra-Chek 4000 Series Metrology Software These Microsoft Windows-based applications are intended for the measurement of 2D parts and are designed for use with measuring microscopes, video inspection machines, video measuring machines and optical comparators.

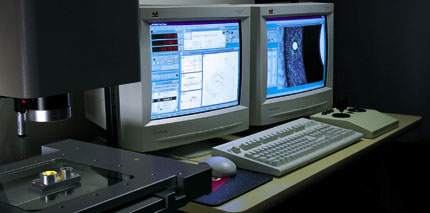

QC-5000 with dual-monitor configuration

QC-5000 Shown in a dual-monitor configuration connected to video probe and touch probe instrument platforms. This fully automated multi-sensor system obtains, stores, manages and distributes precision measurement data directly from the lab or the shop floor.

Get the new Quadra-Chek Metrology Software brochure This link will begin an automatic download of the new Quadra-Chek 5000 brochure in Adobe® Acrobat® PDF file format. PDF files are read with Acrobat Reader, a software utility available free from Adobe. (If your browser is equipped with the Reader plug-in, the PDF file will automatically open in this window. To save the PDF, click the disk icon in the tool bar and specify a target disk.) The brochure PDF is a 3MB file; be sure there is space available on your hard drive and that you allow time for the download given the speed of your Internet connection.

This document presents the new Quadra-Chek 5000 brochure for your immediate review. The brochure outlines the features, configuration options and specifications for the QC-5000 series products in detail. Request a printed version of the brochure now.
