Video-Based Measurement System

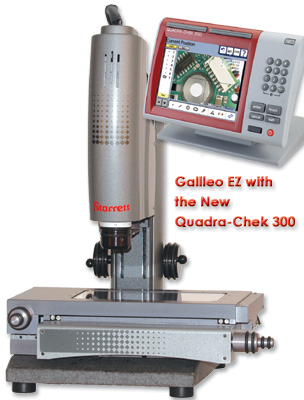

The New Galileo EZ from Starrett is a general-purpose video-based measurement
system ideal for quality assurance and inspection labs, and manufacturing, assembly and research facilities.



A precision mechanical bearing X-Y-Z stage and column translates data accurately and repeatably to a dedicated geometric readout.

The Galileo EZ utilizes the video capabilities of the Quadra-Chek 300 Series with geometric features, enhanced touch-screen interface, built-in live video display and video edge detection (VED).

Features
• 8" x 4" (200 x 100mm) X-Y Measuring
Platform with 6" (150mm) of Z-Travel or
12" x 6" (300 x 150mm) X-Y Measuring
Platform with 5" (125mm) of Z-Travel
• Dual output 150 watt, fiber optic
illuminator
• 1/3" CCD hi-resolution color video camera
• 0.5-micron resolution scales standard
• Compatible with the new QC300 and the
industry standard QC200
• Fiber optic ring light and collimated
substage light
• Calibrated and certified for system
accuracy
• One year warranty


Specifications
Accuracy, X-Y: E1=2.5+7L/1000
Resolution: .00002" (.0005mm)
X-Y Squareness, within: .0001"/inch (.0025mm/25mm)
Column to stage, within: .00016"/inch (.004mm/25mm)
Maximum workload: 20lbs. (9kg.)
Video Camera: Hi-resolution color 1/3" CCD NTSC
Zoom magnification: 6.5 to 1 video zoom optics offering 12 to 300 magnification with auxiliary lens

Options & Accessories
• Z-Axis Measuring
• 1/2X auxiliary lens
• 2X auxiliary lens
• 150mm Line Standard for system
calibration verification
• Co-axial illumination and 3-light illuminator

QC200
Galileo EZ systems are available with the industry standard QC-200 display. QC-200 based systems require a video monitor and crosshair generator.

• Inch/metric conversion, incremental or absolute measurement, zero reset
• Linear error compensation
• RS232C interface
• Skew function for part alignment correction
• Form indication (roundness, etc.)
• Part programming
• Point, Arc, Circle, Distance, and  Angle measuring ability with GD & T

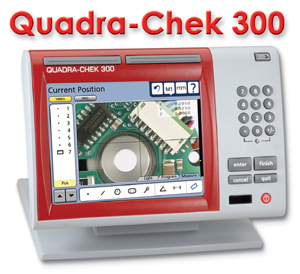

QC-300 Specifications
• LCD 8.4" color touch screen
• Inputs: External connections including footswitch, remote keypad, RS232C  serial port, parallel port and USB port
• All features of the QC-200 (see left)
• Video edge detection (VED)
• Graphical display for tolerance, features, etc.
• Optional image archive allows image capture, and adding text for reporting

Data Point Entry
• Two styles of manual crosshair
• Single edge video tool enables automatic entry of single points
• Multi-edge video tool allows simultaneous entry of multiple points
 • Nine color options for the crosshair and video tools to fit the requirements of virtually any color part
