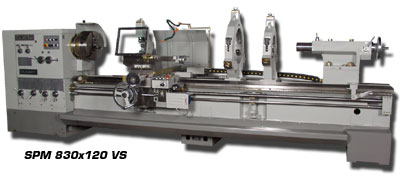

Hercules® SPM Series 24", 28" and 32" Engine Lathes

Key Features:
  • Wide 19.4 Bed for rigidity
  • 4-1/8" spindle hole
  • Removable gap
  • Full inch-metric threading (including all standard API Threads)
  • D-1-11 Nose for easy chuck change
  • Turcite coated ways on carriage and cross slide

SPECIFICATIONS

24" 28" 32"
Swing over bed 25 28 32.5
Swing over cross slide 16 18 22
Swing over gap 34 38 43.5
Length of gap (in front of faceplate) 12 12 12
SUPPORT CAPACITY BETWEEN CENTERS:
Without steady (lbs.) 5500
With one steady 7700
With two steady 8800
HEADSTOCK:
Spindle speeds (number) range (20) (16 to 1250)
Spindle nose type D1-11
Headstock Center #6MT
Hole through spindle 4-1/8
QUICK CHANGE GEARBOX
Threads per inch (number) range 80 (1 to 160)
Metric threads (number) range 44 (0.5 to 80)
Diametral DP (number) range 40 (160 to 2)
Module Threads Mod (number) range 70 (.5 - 40)
Longitudinal feeds (number) range-IPR 140 (0.001 to 160)
Cross feeds (number) range-IPR 140 (0.00025 to 0.040)
CARRIAGE & APRON:
Cross slide travel 12.5" 12.5" 16"
Compound rest travel 6" 6" 10"
Carriage bearing on ways 26.5
TAILSTOCK:
Travel of barrel 8.6"
Diameter of barrel 4.1"
Tailstock of center #6MT
BED:
Width of bed 19.4"
Depth of bed 19"
MAIN DRIVE MOTOR 25HP
DIMENSIONS:  H x W 53" x 64" 53" x 69" 60" x 72"
